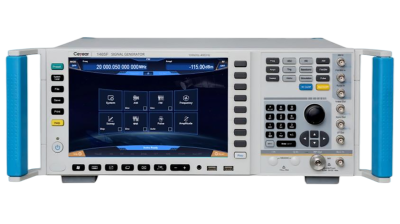

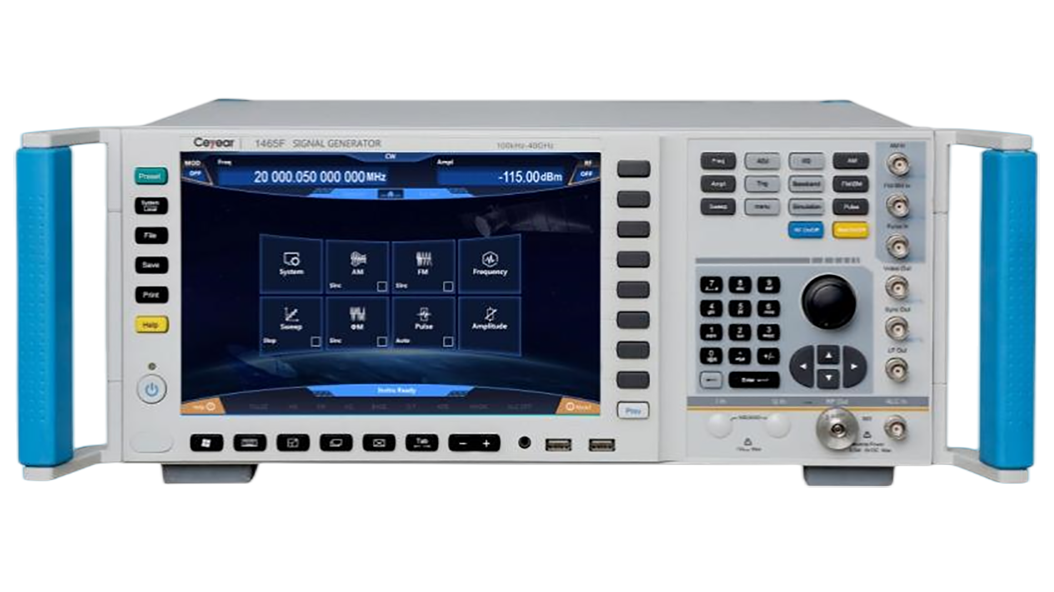

1465-V Series Signal Generator
SKU : 1465-V Series Signal Generator
Product Overview
1465-V series signal generators has excellent vector modulation performance within the frequency range of 100 kHz to 67GHz. It has 1GHz internal modulation bandwidth and 2GHz external modulation real-time bandwidth, which can meet various modulation needs of wideband signals. The generator has excellent spectrum purity and output power specifications. The phase noise of 10GHz carrier@10kHz frequency offset can be reached to -126dBc/Hz, to meet high-level test needs which have strict requirements of testing signals. The generator also has excellent vector modulation accuracy and at the full frequency range the EVM is less than 1.4% (4Msps), which makes the generator be used in metrology purpose. The baseband signal generator can be set easily with flexible performance and many modulation formats. More than 20 kinds of common modulation formats are supported, such as PSK, QAM, and FSK, ASK and so on. The arbitrary wave modulation support 5 kinds of download file format, users can edit and download the waveform according to their own requirement. Thus various signal modulation can be accomplished and complex signals can be generated. Besides，the airspace capsule operation interface design and 10.1 inch high-brightness touch screen can bring a brand-new operation experience to users.
With wide frequency band and modulation bandwidth, 1465-V series signal generator can not only provide user with analog and vector modulated signal with great spectrum purity and modulation types, but also can help user edit arbitrary waves flexibly. It’s an ideal choice for performance test of components, modules, communications, and other electronic systems.
Features
Broadband vector signal generation
1465-V series signal generators can provide various signal testing solutions covering 10GHz/20GHz/40GHz/50GHz/67GHz to meet user’s specific needs in different fields. Especially, 1465L-V signal generator with 100kHz～67GHz frequency range can meet test needs of most users
Large Vector Modulation Bandwidth
1465-V series signal generators can provide 1GHz internal modulation bandwidth and 2GHz external modulation bandwidth（above 3.2GHz carrier）vector signal generation function .
Typical Application
- 1465 series signal generators, with the frequency range from 100kHz to 67GHz, generate signals with high purity spectrum, high power output and remarkable stability, which can be used for comprehensive performance evaluation for such electronic systems as radar system, electronic warfare system, communication equipment system, and for solving such index test problems as band width, sensitivity, dynamic range and intermodulation distortion.
- 1465 series signal generators, with extremely low single side band phase noise and excellent non-harmonic suppression, can output perfect pure signals, used in phase noise, block and adjacent channel selectivity test for a high-performance receiver in the radar, electronic warfare system or communication equipment.
1465 series signal generators, with the maximum output power of 1W, can test a high-power device, with no external amplifier, and overcome the loss of test system, with higher signal power accuracy and stability. - All 1465 series signal generators, with the operating temperature range of 0-50ºC, have high frequency and power stability, and can be used in the durability test of electric equipment where the instrument needs to be powered on for days.
- 1465 series signal generators, with extremely pure signal quality and high output power, can be used for signal excitation for amplifiers, and as an ideal alternative for local oscillator in the tested equipment, such as transmitter and receiver etc..
specifications
203dBm5dBm12dBm
| Frequency properties | |||||||
| Frequency Range | 1465C-V:100kHz~10GHz | Frequency | N（Internal YO harmonic order） | ||||
| 100kHz≤f≤250MHz | 1/8 | ||||||
| 250MHz＜f≤500MHz | 1/16 | ||||||
| 500MHz＜f≤1GHz | 1/8 | ||||||
| 1GHz＜f≤2GHz | 1/4 | ||||||
| 2GHz＜f≤3.2GHz | 1/2 | ||||||
| 3.2GHz＜f≤10GHz | 1 | ||||||
| 10GHz＜f≤20GHz | 2 | ||||||
| 20GHz＜f≤28.5GHz | 3 | ||||||
| 28.5GHz＜f≤50GHz | 5 | ||||||
| 50GHz＜f≤67GHz | 10 | ||||||
Frequency resolution | 0.001Hz | ||||||
| Frequency switching time | ＜20ms | ||||||
| Time-base aging rate（Typical value2） | 5×10 -10 /day（after 30-day continuous power-on) | ||||||
| Reference Output | Frequency | 10MHz | |||||
| Power | >+4dBm，to 50Ω | ||||||
| Reference Input | Frequency | 1-50MHz，1Hz step | |||||
| Power | -5dBm-+10dBm，50Ω impedance | ||||||
| Sweep properties | |||||||
| Sweep mode | Step sweep, List sweep, Analog sweep, Power sweep | ||||||
| Analog sweep (option H03) | Max. sweep speed | 100kHz≤f≤500MHz | 25MHz/ms | ||||
| 500MHz＜f≤1GHz | 50MHz/ms | ||||||
| 1GHz＜f≤2GHz | 100MHz/ms | ||||||
| 2GHz＜f≤3.2GHz | 200MHz/ms | ||||||
| 3.2GHz＜f | 400MHz/ms | ||||||
| Sweep accuracy | 0.05 % Sweep width（for 100m, within the maximum width of 100ms as specified） | ||||||
| Power properties | |||||||
| Min. power | Model | Standard package | Option H01A/B | ||||
| 1465C/D/F-V | -20dBm | -110dBm（-135dBm configurable） | |||||
| 1465H/L-V | -20dBm | -90dBm（-110dBm configurable） | |||||
| Max. power (25±10°C) | Frequency range | Standard package | H01A/B programmable step attenuator option | H05 high-power output option | Options H01A/B+H05 | ||
| 1465A/B/C/D | |||||||
| 100kHz≤f≤20GHz | 15dBm | 15dBm | 203dBm | ||||
| 1465F-V | |||||||
| 100kHz≤f≤9GHz | 10dBm | 10dBm | 18dBm | 18dBm | |||
| 9GHz＜f≤30GHz | 10dBm | 10dBm | 15dBm | 15dBm | |||
| 30GHz＜f≤40GHz | 10dBm | 10dBm | 12dBm | 12dBm | |||
| 1465H/L-V | |||||||
| 100kHz≤f≤15GHz | 5dBm | 5dBm | 15dBm | 15dBm | |||
| 15GHz＜f≤30GHz | 5dBm | 5dBm | 12dBm | 12dBm | |||
| 30GHz＜f≤60GHz | 5dBm | 4dBm | 8dBm | 6dBm | |||
| 60GHz＜f≤67GHz | 4dBm | 3dBm | 6dBm | 4dBm | |||
| Power accuracy （25±10°C） | Standard | ||||||
| Frequency power (dBm) | >10～20 | >-10～10 | -20～-10 | ||||
| 100kHz≤f≤2GHz | ±0.8dB | ±0.6dB | ±1.5dB | ||||
| 2GHz＜f≤20GHz | ±0.8dB | ±0.8dB | ±1.5dB | ||||
| 20GHz＜f≤40GHz | ±1.0dB | ±0.9dB | ±1.8dB | ||||
| 40GHz＜f≤50GHz | --- | ±1.3dB | ±1.8dB | ||||
| 50GHz＜f≤67GHz | --- | ±1.5dB | ±2.0dB | ||||
| 1465D+ H06 enhanced high-power output option | |||||||
| 500MHz＜f≤20GHz | ±1.2dB | ±0.8dB | ±0.9 | --- | |||
| H01A/B programmable step attenuator option | |||||||
| Frequency power (dBm) | >10～20 | >-10～10 | >-70～-10 | -90～-70 | |||
| 100kHz≤f≤2GHz | ±0.8dB | ±0.6dB | ±0.7dB | ±1.5dB | |||
| 2GHz＜f≤20GHz | ±0.8dB | ±0.8dB | ±0.9dB | ±1.8dB | |||
| 20GHz＜f≤40GHz | ±1.0dB | ±0.9dB | ±1.0dB | ±2.0dB | |||
| 40GHz＜f≤50GHz | --- | ±1.3dB | ±1.5dB | ±2.5dB | |||
| 50GHz＜f≤67GHz | --- | ±1.5dB | ±1.8dB | ±3.0dB | |||
| Power resolution | 0.01dB | ||||||
| Power temperature stability | 0.02dB/ºC (typical value) | ||||||
| Output impedance | 50Ω (Rating4) | ||||||
| VSWR(Internal fixed amplitude) (typical value) | 100kHz≤f≤20GHz | ＜1.6 | |||||
| 20GHz＜f≤40GHz | ＜1.8 | ||||||
| 40GHz＜f≤67GHz | ＜2.0 | ||||||
| Max. reverse power | 0.5W (0V DC) (rating) | ||||||
| Spectrum purity5 | |||||||
| Harmonic (at +10dBm or Max. specified output power, whichever is lower) | Frequency | Standard package | |||||
| 100kHz≤f≤10MHz | ＜-25dBc | ||||||
| 10MHz＜f≤2GHz | ＜-30dBc | ||||||
| 2GHz＜f≤6GHz (1465B) | ＜-30dBc | ||||||
| 2GHz＜f≤9GHz | ＜-55dBc | ||||||
| 20GHz＜f≤67GHz | ＜-45dBc (typical value) | ||||||
| Sub-harmonic (at +10dBm or Max. specified output power, whichever is lower) | 100kHz≤f≤10GHz | None | |||||
| 10GHz＜f≤20GHz | <-60dBc | ||||||
| 20GHz＜f≤67GHz | <-45dBc | ||||||
| Non-harmonic(At 0dBm, beyond 3kHz offset) | Frequency | Standard package | Option H04 | ||||
| 100kHz≤f≤250MHz | ＜-58dBc | ＜-58dBc | |||||
| 250MHz＜f≤3.2GHz | ＜-74dBc | ＜-80dBc | |||||
| 3.2GHz＜f≤10GHz | ＜-62dBc | ＜-70dBc | |||||
| 10GHz＜f≤20GHz | ＜-56dBc | ＜-64dBc | |||||
| 20GHz＜f≤28.5GHz | ＜-52dBc | ＜-52dBc | |||||
| 28.5GHz＜f≤40GHz | ＜-45dBc | ＜-45dBc | |||||
| 40GHz＜f≤60GHz | ＜-42dBc | ＜-42dBc | |||||
| Single side band phase noise(dBc/Hz, +10dBm or Max. output power, whichever is smaller) | Frequency | 1Hz | 10Hz | 100Hz | 1kHz | 10kHz | 100kHz |
| 100kHz≤f≤250MHz | --- | --- | -104 | -121 | -128 | -130 | |
| 250 MHz＜f≤500MHz | --- | --- | -108 | -126 | -132 | -136 | |
| 0.5 GHz＜f≤1GHz | --- | --- | -101 | -121 | -130 | -130 | |
| 1 GHz＜f≤2GHz | --- | --- | -96 | -115 | -124 | -124 | |
| 2 GHz＜f≤3.2GHz | --- | --- | -92 | -111 | -120 | -120 | |
| 3.2 GHz＜f≤10GHz | --- | --- | -81 | -101 | -110 | -110 | |
| 10 GHz＜f≤20GHz | --- | --- | -75 | -95 | -104 | -104 | |
| 20 GHz＜f≤40GHz | --- | --- | -69 | -89 | -98 | -98 | |
| 28.5GHz＜f≤50GHz | --- | --- | -64 | -84 | -92 | -92 | |
| 50GHz＜f≤67GHz | --- | --- | -57 | -77 | -86 | -86 | |
| H04 ultra low phase noise option | |||||||
| 100kHz≤f≤250MHz6 | -64 | -92 | -105 | -123 | -138 | -141 | |
| 250 MHz＜f≤500MHz | -67 | -93 | -111 | -126 | -138 | -142 | |
| 0.5 GHz＜f≤1GHz | -62 | -91 | -105 | -123 | -138 | -138 | |
| 1 GHz＜f≤2GHz | -57 | -86 | -100 | -117 | -133 | -133 | |
| 2 GHz＜f≤3.2GHz | -52 | -81 | -96 | -113 | -128 | -128 | |
| 3.2 GHz＜f≤10GHz | -43 | -72 | -85 | -105 | -120 | -120 | |
| 10 GHz＜f≤20GHz | -37 | -66 | -79 | -98 | -114 | -114 | |
| 20 GHz＜f≤40GHz | -31 | -60 | -73 | -91 | -108 | -108 | |
| 28.5GHz＜f≤50GHz | -26 | -54 | -68 | -85 | -102 | -102 | |
| 50GHz＜f≤67GHz | -20 | -48 | -62 | -79 | -96 | -96 | |
| Modulation properties | |||||||
| Frequency modulation (option H02A) | Maximum deviation：N×16MHz (N: YO harmonic number) Accuracy (at 1kHz, N×20kHz≤deviation<N×800kHz): < ± (3.5%×set frequency offset + 20Hz) Modulation rate(3dB bandwidth, N×500kHz frequency offset): DC-10MHz Distortion(at 1kHz, N×20kHz≤deviations<N×800kHz): <1% | ||||||
| Phase modulation (option H02A) | Maximum deviation： Normal mode: N×16rad (N: YO harmonic number) Broadband mode: N×1.6rad (N is YO harmonic number) Accuracy(at 1kHz, N×0.2rad≤deviations＜N×8rad, normal mode) <± (5% of deviation + 0.01 rad) Modulation rate (3dB bandwidth，Broadband mode): DC～10MHz (typical value) Distortion (at 1kHz, N×0.8rad≤deviations＜N×8rad, THD): <1% | ||||||
| Amplitude modulation (option H02A) | Max. depth：＞90％ Distortion (1kHz modulation rate, linear mode, THD, 30% modulation depth): <1.5% | ||||||
| Pulse modulation | 500MHz - 3.2GHz | > 3.2GHz | |||||
| (option H02B) | Switching ratio | ＞80dB | ＞80dB | ||||
| Rise and fall time | ＜20ns | ＜20ns | |||||
| Minimum pulse of internal fixed amplitude | 1μs | 1μs | |||||
| Minimum pulse of non-fixed amplitude | 0.1μs | 0.1μs | |||||
| Narrow Pulse modulation(option H02C) | 50MHz～3.2GHz | >3.2GHz | |||||
| Switch ratio | ＞80dB | ＞80dB | |||||
| Rise and fall time | ＜15ns | ＜10ns | |||||
| Min. pulse width ALC on | 1μs | 1μs | |||||
| Min. pulse width ALC off | 30ns | 20ns | |||||
| Internally modulated signal generator (option H02A/B/C) | There are 3 independent signals respectively for frequency/phase modulation, amplitude modulation and low frequency output signals. Waveform: sine, square, triangle, Sawtooth, noise, double sine, sweep sine. Frequency range: DC～10MHz for sine, double sine, sweep sine; 0.1Hz～100kHz for square, triangle, Sawtooth Frequency resolution: 0.1Hz Low frequency output: Amplitude: 0-5Vpeak(rating), to 50Ω load. Pulse modulation signal: pulse width: 20ns-(42s-10ns); pulse period: 100ns-42s; resolution: 10ns. | ||||||
| Vector modulation accuracy(after calibration, 25℃±10℃)(4Msps, root-Nyquist, α=0.3, QPSK, 0dBm) | 1465C/D/F-V | 50MHz-40GHz(or max. frequency) | EVM(RMS%)<1.4% | ||||
| 1465H/L-V | 50MHz-40GHz | EVM(RMS%)<1.4% | |||||
| 40GHz-67GHz(or max. frequency) | EVM(RMS%)<2.5% | ||||||
| Internal modulation bandwidth | (Carrier 900MHz, 1.8GHz, 2.4GHz, 6GHz, 18GHz, 35GHz, 50GHz) Standard package： 120MHz(Multi-tone, Tone quantity: 51, Frequency space: 2.4MHz,±3dB bandwidth); H31 large modulation bandwidth option: 200MHz (Multi-tone, Tone quantity: 51, Frequency space: 4MHz, ±3dB bandwidth) H36 500MHz large modulation bandwidth option: 500MHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth) H37 1GHz large modulation bandwidth option: 1GHz (Multi-tone, Tone quantity: 512, ±3dB bandwidth) | ||||||
| External modulation Bandwidth | (Carrier 900MHz、1.8GHz、2.4GHz、6GHz、18GHz、35GHz、50GHz) 200MHz(ALC OFF, input 100mVrms sine to channel I, ±4dB bandwidth) | ||||||
| External wide modulation Bandwidth (option H33) | (6GHz、18GHz、35GHz、50GHz) 2GHz(ALC OFF, input 100mVrms sine to channel I, ±4dB bandwidth) | ||||||
| nternal baseband signal generator | Channel quantities：2(I and Q) Max. symbol rate: standard package: 60Msps(Max. 4bit/symbol) option H31: 125Msps(Max. 4bit/symbol) option H36: 156.25Msps option H37: 312.5Msps Baseband waveform internal memory: standard package: 1GSa option H32: 2GSa Modulation format： PSK: BPSK, QPSK, OQPSK, π/4 DQPSK, D8PSK, 16PSK; QAM: 4, 16, 32, 64, 128, 256, 512, 1024; FSK: 2, 4, 8, 16; ASK; MSK; Arbitrary wave modulation. Dual-tone mode max. frequency offset: 200MHz EVM: <1.0%(typical value)(RMS%, Symbol rate 4Msps, Root Nyquist, α=0.3, QPSK) | ||||||
| General properties | |||||||
| RF Output Port | 1465C-V: N (female), impedance 50Ω. 1465D-V: 3.5mm (male), N (female) (option H91), impedance 50Ω. 1465F-V: 2.4mm (male), impedance 50Ω. | ||||||
| Max. Physical Dimension | W×H×D: 517mm×192mm×550mm | ||||||
| Weight | <28 kg(as per model and option configuration) | ||||||
| Power Supply | 100-120VAC, 50-60Hz; or 200-240VAC, 50～60Hz(self-adaptive) | ||||||
| Power Consumption | <400W | ||||||
| Temperature Range | Working temperature：0℃～+50℃；Storage temperature：-40℃～+70℃ | ||||||
