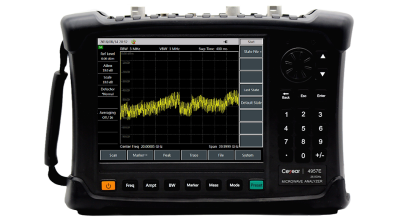

4957D/E/F Microwave Analyzer
SKU : 4957D/E/F Microwave Analyzer
Product Overview
The 4957D/E/F microwave analyzer has a frequency range of up to 18 GHz/26.5 GHz/40 GHz, and is provided with various functions, including dual port vector network analysis, cable and antenna analysis, vector voltage measurement, spectrum analysis (channel power, adjacent channel power, occupied bandwidth, interference analysis and frequency counting), field strength measurement and power measurement, providing users with powerful comprehensive analysis capabilities!
Dual-port vector network analysis has the capability of fast and accurate measurement of RF network parameters, provides logarithm, linearity, phase, group delay, impedance circle diagram, polar coordinates, standing wave ratio and other displaying formats and also provides time domain measurements option.
The cable and antenna analysis can measure the standing wave ratio, return loss, impedance, cable loss and other parameters of the microwave network such as antenna, transmission line and cable. In addition, the Distance-To-Fault (DTF) function enables to conveniently measure the impedance discontinuous point of the cable antenna feeder and cable.
The vector voltage measurement function replaces the traditional vector voltmeter with an integrated solution that accurately analyzes the electrical length of cables and other devices under analysis.
The spectrum analyzer is a standard function spectrum analyzer that comprehensively measures the spectral features of the electromagnetic environment.
The field strength measurement function features user-friendly interface and high analysis sensitivity, can effectively monitor the electromagnetic spectrum with the corresponding analysis antenna and is widely used in space electromagnetic environment monitoring and radio management.The USB power sensor is configured to achieve large dynamic range and high-precision power measurement, or implement power monitoring through the spectrum input port.
specifications
| 4957D | 4957E | 4957F | ||
| Antenna and vector network analysis | Frequency range | 30 kHz ~ 18 GHz | 30 kHz ~ 26.5 GHz | 50 MHz ~ 40 GHz |
| Frequency accuracy | ±1 × 10-6 | |||
| Power range: | Hi, Low, Manual | |||
| Effective directivity | 32 dB ~ 40 dB | 32 dB ~ 40 dB | 28 dB ~ 35 dB | |
| Effective source matching | 25 dB ~ 37 dB | 25 dB ~ 37 dB | 18 dB ~ 30 dB | |
| Reflected tracking | ±0.10dB ~ ±0.14dB | ±0.10dB ~ ±0.25dB | ±0.10dB ~ ±0.25dB | |
| Transmission tracking | ±0.25dB ~ ±0.33dB | ±0.25dB ~ ±0.35dB | ±0.25dB ~ ±0.50dB | |
| Dynamic range | ≥ 85 dB | 80 dB ~ 85 dB | 65 dB ~ 85 dB | |
| Power Meter | Frequency range | 100 kHz ~ 18 GHz | 100 kHz ~ 26.5 GHz | 100 kHz ~ 40 GHz |
| Power range: | -60 dBm ~ +20 dBm | -60 dBm ~ +20 dBm | -50 dBm ~ +20 dBm | |
| Spectrum Analyzer mode | Frequency range | 100 kHz ~ 18 GHz | 100 kHz ~ 26.5 GHz | 100 kHz ~ 40 GHz |
| Res BW | 1 Hz ～ 5 MHz (1, 3 sequence) | |||
| Video bandwidth | 1 Hz ～ 5 MHz (1, 3 sequence) | |||
| Explicit average noise level | -140 dBm ~ -151 dBm (Pre Amp On) | -138 dBm ~ -151 dBm (Pre Amp On) | -135 dBm ~ -151 dBm (Pre Amp On) | |
| -120 dBm ~ -135 dBm (Pre Amp Off) | -116 dBm ~ -135 dBm (Pre Amp Off) | -113 dBm ~ -135 dBm (Pre Amp Off) | ||
| Noise sideband (CF=1 GHz) | ≤ -102 dBc / Hz@30 kHz; ≤ -99 dBc / Hz@100 kHz; ≤ -110 dBc / Hz@1 MHz | |||
| Residual response | ≤ -80 dBm | ≤ -70 dBm | ||
| Maximum safe input level | +27 dBm | |||
| Test port type | N type (female) | 3.5 mm (male) | 2.4 mm (male) | |
| Power supply | Rechargeable li-ion battery or power adapter | |||
| Power consumption | ≤ 45 W (excluding battery charging) | |||
| Working temperature range | -10℃ ~ +50℃ | |||
| Storage temperature range | -40℃ ~ +70℃ | |||
| Max. weight | 5.3 kg (excluding battery) | |||
| Max. outside dimensions (Width × Height × Depth) | 315 mm × 220 mm × 102 mm (excluding handles and supports) | |||
