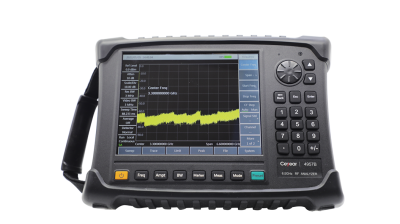

4957B RF Analyzer
SKU : 4957B RF Analyzer
Product Overview
With frequency range of 6.5GHz/18GHz/26.5GHz/40GHz, 4957B/D/E/F microwave analyzers integrate multiple functions such as dual-port vector network analysis, cable and antenna feeder test, vector voltage measurement, spectrum analysis (channel power, adjacent channel power, occupied bandwidth, interference analysis and frequency counting), field strength measurement and power measurement, providing you with powerful comprehensive test capabilities.
Dual-port vector network analysis can make comprehensive RF network parameters measurement quickly and accurately, providing logarithmic, linear, phase, group delay, impedance chart, polar coordinate, SWR and other display formats, and providing time domain measurement options.
Cable and antenna feeder test can measure the SWR, return loss, impedance, cable loss and other parameters of microwave networks such as antenna feeders, transmission lines and cables, and can conveniently measure impedance discontinuity points in feeders and cables, with DTF function.
The vector voltage measurement function adopts an integrated solution instead of the traditional vector voltmeter to accurately test the electrical length of cables and some other devices under test.
Spectrum analysis is a spectrum analyzer with standard functions, which can measure the spectrum characteristics comprehensively in an electromagnetic environment.
The field strength measurement function has a friendly user interface and higher test sensitivity. With the corresponding test antenna, it can effectively monitor the electromagnetic spectrum and is widely used in space electromagnetic environment monitoring and radio management.
The USB power sensor is configured to achieve large dynamic range and high-precision power measurement, and can also carry out power monitoring through the spectrum input port.
specifications
| 4957B | 4957D/E | 4957F | |||
| Antennafeedertest | Frequency range | 30kHz~6.5GHz | 30kHz~18GHz 30kHz~26.5GHz | 50MHz~40GHz （Minimum frequency can up to 10MHz） | |
| Frequency accuracy | ±1×10-6 | ||||
| Power level | Large, small | ||||
| Data points | 11~10001 | ||||
| Effective directivity | ≥40 dB 2MHz~500MHz | ≥35 dB 50MHz~500MHz | |||
| ≥40 dB （30kHz~6.5GHz） | ≥36 dB 500MHz~9GHz ≥30 dB 18GHz~26.5GHz | ≥32 dB 500MHz~18GHz ≥30 dB 18GHz~26.5GHz ≥28 dB 26.5GHz~40GHz | |||
| Vector network analysis | Frequency range | 30kHz~6.5GHz | 30kHz~18GHz/ 26.5GHz | 50MHz~40GHz （Minimum frequency can up to 10MHz） | |
| Frequency accuracy | ±1×10-6 | ||||
| Power range | Large, small, manual | ||||
| Output power accuracy | ±2.5dB （10MHz~6.5GHz） | ±2.5dB | ±2.5dB （10MHz~26.5GHz） | ||
| （10MHz~26.5GHz） | ±3.0dB （26.5GHz~40GHz） | ||||
| Effective source match | ≥33 dB (300kHz~6.5GHz） | ≥37 dB （2MHz~500MHz） ≥30 dB （500MHz~9GHz） ≥28 dB （9GHz~18GHz） ≥25dB （18GHz~26.5GHz） | ≥30 dB （50MHz~500MHz） ≥25 dB （500MHz~18GHz） ≥22 dB （18GHz~26.5GHz） ≥18dB （26.5GHz~40GHz） | ||
| Transmission tracking | ±0.08dB （300kHz~6.5GHz） | ±0.25dB （2MHz~500MHz） ±0.29dB （500MHz~9GHz） ±0.33dB （9GHz~18GHz） ±0.35dB （18GHz~26.5GHz） | ±0.25dB (50MHz~500MHz) ±0.29dB (500MHz~9GHz) ±0.33dB (9GHz~18GHz) ±0.35dB (18GHz~26.5GHz) ±0.40dB (26.5GHz~33GHz) ±0.50dB (26.5GHz~40GHz) | ||
| Reflection tracking | ±0.06dB (300kHz~6.5GHz) | ±0.10dB (2MHz~500MHz) ±0.13dB (500MHz~9GHz) ±0.14dB (9GHz~18GHz) ±0.21dB (18GHz~26.5GHz) | ±0.10dB (50MHz~500MHz) ±0.13dB (500MHz~9GHz) ±0.14dB (9GHz~18GHz) ±0.21dB (18GHz~26.5GHz) ±0.25dB (26.5GHz~33GHz) ±0.30dB (33GHz~40GHz) | ||
| System dynamic range | ≥95 dB (300kHz~6.5GHz) | ≥85 dB (2MHz~18GHz) ≥80 dB (18GHz~26.5GHz) | ≥85 dB (50MHz~18GHz) ≥80 dB (18GHz~26.5GHz) ≥75 dB (26.5GHz~33GHz) ≥65 dB (33GHz~40GHz) | ||
| Effective directivity | ≥40 dB (300kHz~6.5GHz) | ≥40 dB (2MHz~500MHz) ≥36 dB (500MHz~9GHz) ≥32 dB (9GHz~18GHz) ≥30 dB (18GHz~26.5GHz) | ≥35 dB (50MHz~500MHz) ≥32 dB (500MHz~18GHz) ≥30 dB (18GHz~26.5GHz) ≥28 dB (26.5GHz~40GHz) | ||
| Power monitoring | Frequency range | 9kHz~6.5GHz | 100kHz~18GHz 100kHz~26.5GHz | 100kHz~40GHz | |
| Power range | -80m~+20dBm | -60dBm~+20dBm | -50dBm~+20dBm | ||
| Spectrum analysis mode | Frequency range | 9kHz~6.5GHz | 100kHz~26.5GHz | 100kHz~40GHz | |
| Resolution bandwidth | Range:10Hz~10MHz (1, 3, 10 steps)Accuracy(3.0Db):±10% （1kHz~10MHz） | Range：1Hz to 5MHz (1, 3, 10 steps) Accuracy(3.0Db): ±10% (3kHz~3MHz) ±15% 5MHz | |||
| Video bandwidth | 1Hz~10MHz (1, 3, 10 steps) | 1Hz~5MHz (1, 3, 10 steps) | ||
| Display aver age noise level | Pre- ampli fier(o ff) | ≤-135dBm (2MHz～10MHz) ≤-140dBm (10MHz～3GHz) ≤-138dBm (3GHz～6.5GHz) | ≤-135dBm (2MHz～4.5GHz) ≤-131dBm (4.5GHz～7GHz) ≤-127dBm (7GHz～13GHz) ≤-120dBm (13GHz～18GHz) | ≤-135dBm (2MHz～4.5GHz) ≤-131dBm (4.5GHz～7GHz) ≤-127dBm (7GHz～13GHz) ≤-120dBm (13GHz～18GHz) | |
| ≤-116dBm (18GHz～26.5GHz) | ≤-116dBm (18GHz～26.5GHz) ≤-113dBm (26.5GHz～40GHz) | ||||
| Pre- ampli fier(o n) | ≤-150dBm （2MHz～10MHz） ≤-160dBm (10MHz～3GHz) ≤-157dBm (3GHz～6.5GHz) | ≤-151dBm (2MHz～4.5GHz) | ≤-151dBm (18GHz～26.5GHz) | ||
| Phase Noise(CF=1GHz) | ≤-108dBc/Hz@10kHz ≤-112dBc/Hz@100kHz ≤-118dBC/Hz@1MHz | ≤-102dBc/Hz@30kHz ≤-99dBc/Hz@100kHz ≤-110dBc/Hz@1MHz | |||
| Total absolute amplitude accuracy | ±1.8dB | ±2.0dB 10MHz~18GHz ±2.3dB 18GHz~26.5GHz | ±2.0dB 10MHz~18GHz ±2.3dB 18GHz~26.5GHz ±2.7dB 26.5GHz~40GHz | ||
| Residual response | Except 3200MHz frequency point ≤-95dBm (Pre- amplifier on） ≤-82dBm (Pre- amplifier off） | ≤-80dBm | ≤-70dBm | ||
| Maximum safe input level | +27dBm | ||||
| Type of test port | N-type (female) | N-type (female)/3.5mm (male) | 2.4mm (male) | ||
| Power supply | Rechargeable lithium-ion battery or power adapter | ||||
| Power consumption | ≤30W (excluding battery charging) | ≤45W (excluding battery charging) | |||
| Operating temperature | -10℃~+5℃ | ||||
| Storage temperature | -40℃~+70℃ | ||||
| Maximum weight | 5.3kg (excluding battery) | ||||
| Maximum dimensions (width × height × depth) | 315mm×220mm×102mm (excluding handle and bracket) | ||||
