9951Y Lightwave Test Platform

Product Overview

The 9951A/Y lightwave test platform is a modular, multi-channel test instrument developed for users in the optoelectronics industry. Different modules such as polarization scrambler can realize optical power measurement, optical power attenuation, optical path switching, optical polarization scramble and other functions. Each module is pluggable and interchangeable, which is convenient to quickly build a test system. The product has a wealth of external communication interfaces, including LAN, RS232C and USB interfaces, of which the LAN interface supports a maximum of 64 clients to access together, which can meet the needs of various program control and data communication. By matching various high-performance optoelectronic measurement modules, the 9951A/Y lightwave test platform can flexibly, efficiently and reliably complete test tasks. Improve user test efficiency and reduce test cost.

Main Features

• Optical power meter function

• Optical attenuator function

• Optical switch function

• Light scrambler function

• Remote control function

• Multi-client access function

• High-definition touch screen display control (9951A)


Module automatic identification function
After the host platform is powered on, it will automatically identify the module and
display the module information to quickly build the system.

Optical power meter function
The operating wavelength range of the optical power meter module is 800nm to 1700nm.
The module has been calibrated in the whole band. By matching different types of optical
power meter modules, the optical power test with a large dynamic range of -90dBm to
+26dBm can be realized.

Optical attenuator function
The optical attenuator module has both single-mode and multi-mode test modules,
which can control the optical power attenuation and achieve a wide range of powerattenuation from 0dB to 65dB.

Optical switch function
The optical switch has a variety of different channel modules, which can realize fast
switching of the optical path.

Light scrambler function
The light scrambling module can disrupt the polarization state of light, so that the
polarized light after scrambling evenly covers the entire Bonga sphere, and the degree of
polarization after scrambling is less than or equal to 5%.

Remote control function
The host platform has two program control interfaces: network port and serial port (only
9951A), and provides remote control instruction set.

Multi-client access capability
Through network port control, the system supports multi-client access function, allowing
up to 64 clients to access together. Combined with this function, large-scale production
test systems such as optical components and optical modules can be built.

HD touch screen display control
The 9951A platform is equipped with a 4.3-inch high-definition touch screen, with a
friendly convenient and efficient interface.
Typical Applications
The products can be used in the research and development, production and testing of
optical passive devices, optical active devices, optical modules and optical components.
For example: select configuration, optical attenuator, optical power meter module module and the optical switch module and so on light module production test system, using the system of remote control and multiple clients access function module light production test system, the formation of multiple optical module testing lines, saving space, multiple clients, the machine can remote monitoring test data, to facilitate intelligent production line test.

Technical Specifications

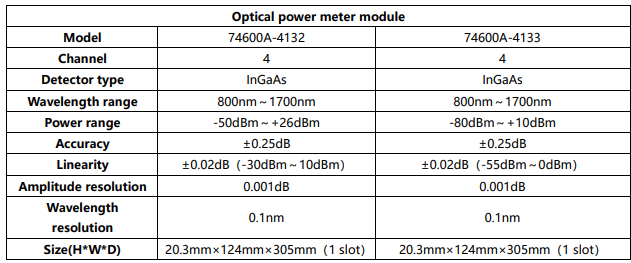

Note: 1. The wavelength can be customized. Environmental adaptability: working temperature is 0℃～+40℃; storage temperature is -20℃～+70℃; relative humidity is 5%～95%. All the above indicators are tested at 23±5℃, below 60%RH
