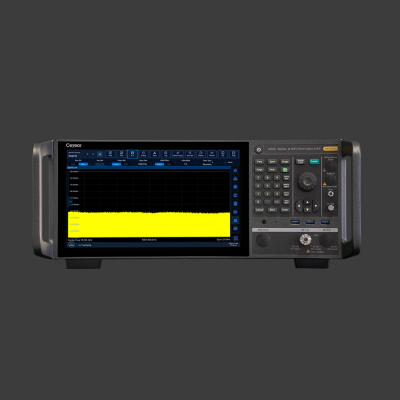

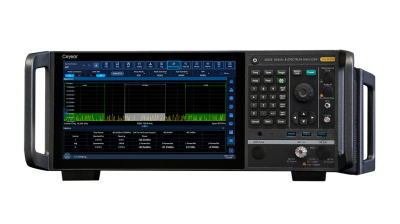

4052 Series Signal and Spectrum Analyzer

 Product Overview

Ceyear 4052 series signal/spectrum analyzer is a new mid-range series of signal analyzers launched by Ceyear Technologies. The signal/spectrum analyzer has excellent test dynamic range, phase noise, amplitude accuracy and measurement speed, and has rich test functions such as spectrum analysis, I/Q analysis, real-time spectrum analysis, transient analysis, vector signal analysis, pulse analysis, and audio analysis functions.
As a multifunctional general-purpose signal and spectrum analyzer, Ceyear 4052 has good expansion capability and can build a test system or carry out secondary development through a variety of digital and analog output interfaces. With the perfect match of superior performance and flexible applications, it can meet your testing needs for rapid production of signals and equipment in wireless communications, automotive electronics, low-orbit satellites, Internet of Things, aerospace and defense and other fields.

 Features

First-class Spectrum Performance and Characteristics

Ceyear 4052 has excellent test dynamic range, phase noise, amplitude accuracy and fast test speed.

• Ultra-wide Frequency Coverage
  The measurement frequency range ranges from 2Hz to 50GHz, with 8 optional frequency band configurations, meeting the test requirements from low frequency to millimeter wave requirements.

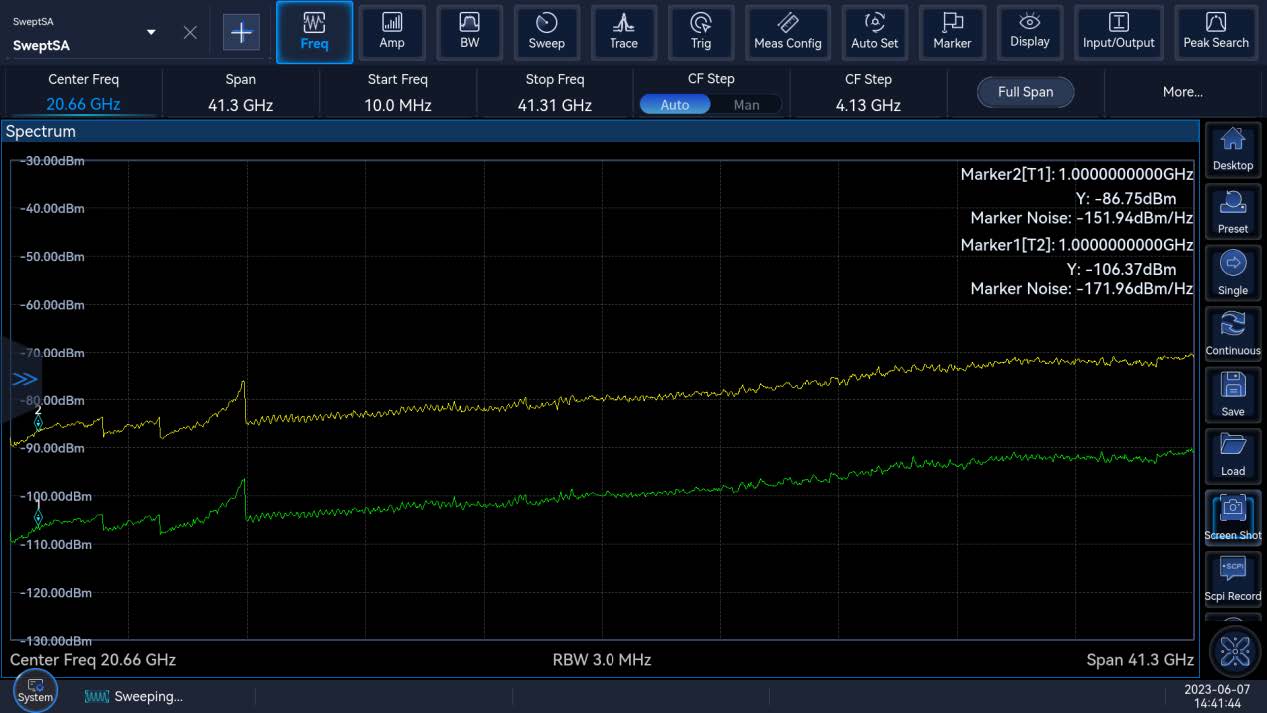

• Outstanding DANL Specification
  The displayed average noise level at 1GHz is -154dBm/Hz, it can reach -165dBm/Hz after configuring the preamplifier, and it can reach -172dBm/Hz after the noise cancellation function is turned on.

• Excellent Phase Noise Performance
  With excellent phase noise performance, it can meet the extreme requirements of users in communication signal measurement. Under the condition of 1GHz carrier and 10kHz frequency offset, the phase noise is better than -122dBc/Hz.
• High Precision Amplitude Measurement Error
  With excellent amplitude measurement accuracy, the signal amplitude measurement accuracy in the frequency band below 8GHz is better than ±0.5dB.

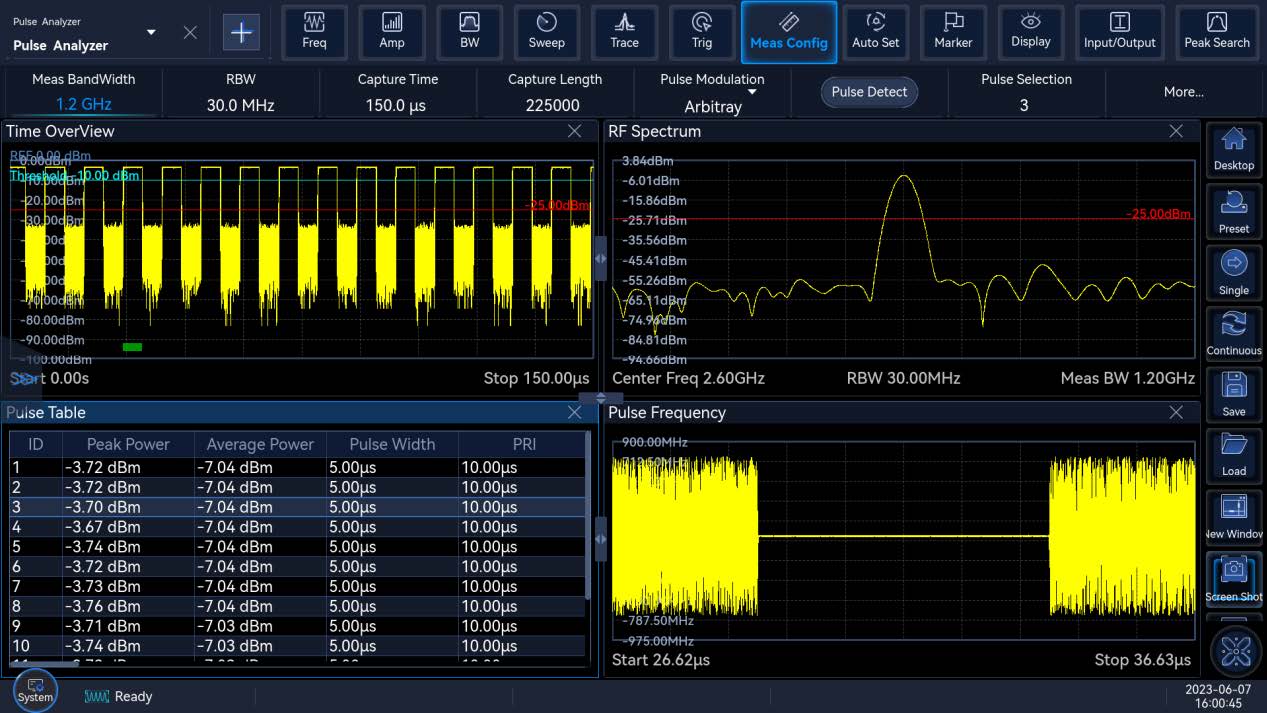

1.2GHz Analysis Bandwidth

Ceyear 4052 has an instantaneous  analysis bandwidth of 1.2GHz, and provides 6 options from 10MHz (standard) to 1.2GHz (optional) to meet the application requirements of different  test scenarios.

• Multiple Analysis Bandwidth Configuration Options
  Provide a total of 6 bandwidth configuration options of
  10MHz/40MHz/200MHz/400MHz/600MHz/1.2GHz to meet flexible configuration in different test application scenarios such as 5G NR, and WLAN.

• Superior Spurious Free Dynamic Range
  The spurious-free dynamic range under the 200MHz analysis bandwidth is -75dBc, and the spurious-free dynamic range under the 1.2GHz analysis bandwidth is -65dBc.

●   Coaxial frequency coverage: 2Hz to 50GHz

●     Maximum 1.2GHz analysis bandwidth, optional bandwidth from 10MHz to 1.2GHz

●     Excellent
phase noise performance: 122dBc/Hz at 1GHz carrier @10kHz offset

●     10 Gigabit network interface

●     Full bandwidth of real-time recording and playback

●     Powerful mobile communication, satellite signal analysis function
