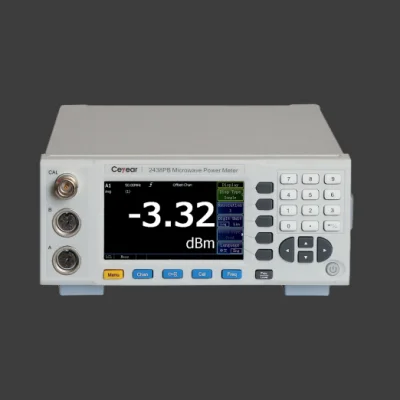

2438 Series Microwave Power Meter
SKU : 2438 Series Microwave Power Meter
Product Overview
2438 series microwave power meter consists of a main unit of microwave power meter and a series of microwave power sensors. In the design, broadband diode detector, digital signal processing technology and multidimensional calibration compensation technology are adopted to make the instrument have wide frequency band, wide dynamic range, high accuracy, fast measurement and analysis, sensor serialization, convenient use and so on. It is mainly used for measuring and calibrating the average power, peak power and pulse envelope power of microwave signals. It is an important measurement instrument for R&D, production, acceptance and maintenance in communications and other fields.
Features
● Multi in one instrument
CW measurement, peak measurement, CCDF statistic measurement
CW power sensor frequency up to 500GHz
Max. dynamic range: 90dB
When the peak power sensor is connected, it becomes high-performance peak power meter. The amplitude and time domain parameters of pulse modulated signals in 50MHz ~ 67GHz band can be measured and analyzed.
Frequency response offset for high power measurement
This function is very useful when storing high-power directional coupler or high-power attenuator for high frequency signal measurement. After starting the frequency response offset function, the power meter automatically sets the calibration factor according to the calibration form of the sensor and the frequency response offset form in the process of automatic calibration and power measurement, and corrects the measurement results to ensure the measurement accuracy.
Save and recall configuration information
In order to reduce the duplication process, the user can save up to 10 configuration information of the power meter host. These configuration parameters are stored in the system, and the user can make a convenient call when conducting similar measurements.
Typical Application
● In CW mode, it is a universal microwave power meter.
In peak measurement mode, through setting time base, the instrument can automatically measure and analyze more than 10 kinds of microwave / millimeter-wave pulse modulation signal pulse envelope parameters, such as peak power, pulse power, average power, overshoot, rise time, fall time, top amplitude, bottom amplitude, pulse width, pulse period, duty cycle, off-time, pulse repetition frequency, and etc.
specifications
Technical Specifications
Main unit
| Model | 2438PA/PB | 2438CA/CB |
| Channels | Single/Double | Single/Double |
| Frequency range | 9kHz～500GHz | 9kHz～500GHz |
| Pulse power range | -40dBm～ +20dBm | —— |
| CW power range | -70dBm～ +50dBm | -70dBm～ +50dBm |
| Max. display resolution | Log：0.001dB Line：0.0001 | Log：0.001dB Line：0.0001 |
| Relative offset range | ±100.00dB | ±100.00dBRise time |
| Rise time | ≤13ns | —— |
| Video bandwidth | ≥30MHz | —— |
| Maximum pulse repetition rate | 10MHz | —— |
| Minimum pulse width | 50ns | —— |
| Time base range | 2ns/div～3600s/div | —— |
| Internal trigger level range | -20dBm～ +20dBm | —— |
| Calibration source frequency | 50MHz±1MHz | 50MHz±1MHz |
| Calibration source power | 1.000mW（1±1.0%） | 1.000mW（1±1.0%） |
| Connector type | Type-N（f） | Type-N（f） |
| Meter uncertainty | ±1.0% | ±1.0% |
| Display | 4.3 inch colorful LCD | 4.3 inch colorful LCD |
| Power requirement | 90～240VAC， 50/60Hz，50Watts Max. | 90～240VAC，50/60Hz，50Watts Max. |
| Dimensions (W×H×D) | 220 mm * 89 mm * 340 mm | 220 mm * 89 mm * 340 mm |
Weight | ≤5kg | ≤5kg |
| Operating/storage temperature | 0℃～50℃/-40℃～+70℃ | 0℃～50℃/-40℃～+70℃ |
CW power sensor
| 71710A CW Power Sensor | Frequency range | 9kHz～12GHz | |
| Power range | -60dBm～+20dBm | ||
| Maximum SWR | 100kHz～12GHz | 1.20 | |
| Calibration factor uncertainty | 9kHz～12GHz | ±4.0% | |
| Connector type | Type-N（m） | ||
| 71710D CW Power Sensor | Frequency range | 10MHz～18GHz | |
| Power range | -70dBm～+20dBm | ||
| Maximum SWR | 10MHz～ 50MHz 2GHz 12.4GHz 18GHz | 1.35 1.15 1.20 1.26 | |
| Calibration factor uncertainty | 10MHz～18GHz | ±4.5% | |
| Connector type | Type-N（m） | ||
| 71710E CW Power Sensor | Frequency range | 50MHz～26.5GHz | |
| Power range | -70dBm～+20dBm | ||
| Maximum SWR | 50MHz～ 2GHz 12.4GHz 18GHz 26.5GHz | 1.15 1.20 1.26 1.35 | |
| Calibration factor uncertainty | 50MHz～ 18GHz 26.5GHz | ±4.5% ±5.9% | |
| Connector type | 3.5mm（m） | ||
| 71710F CW Power Sensor | Frequency range | 50MHz～40GHz | |
| Power range | -70dBm～+20dBm | ||
| Maximum SWR | 50MHz～ 2GHz 12.4GHz 18GHz 26.5GHz 40GHz | 1.15 1.20 1.26 1.35 1.50 | |
| Calibration factor uncertainty | 50MHz～ 18GHz 26.5GHz 40GHz | ±4.5% ±5.9% ±6.9% | |
| Connector type | 2.4mm（m） | ||
| 71710L CW Power Sensor | Frequency range | 50MHz～67GHz | |
| Power range | -70dBm～+20dBm | ||
| Maximum SWR | 50MHz～2GHz 2GHz～12.4GHz | 1.15 1.20 1.26 1.35 1.50 1.78 | |
| Calibration factor uncertainty | 50MHz～18GHz | ±4.5% ±5.9% ±6.9% ±7.9% | |
| Connector type | 1.85mm（m） | ||
| 71716Milimeter-wavepower sensor | Frequency range | 50GHz～75GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.35 | ||
| Connector type | Standard square wave-guide | ||
| 71717Milimeter-wavepower sensor | 71717 Milimeter-wave power sensor | 75GHz～110GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.35 | ||
| Connector type | Standard square wave-guide | ||
| 71718Milimeter-wavepower sensor | Frequency range | 110GHz～170GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.45 | ||
| Connector type | Standard square wave-guide | ||
| 87106A Milimeter-wave power sensor | Frequency range | 170GHz～220GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.5 | ||
| Connector type | Standard square wave-guide | ||
| 87106BMilimeter-wavepower sensor | Frequency range | 220GHz～325GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.5 | ||
| Connector type | Standard square wave-guide | ||
| 87108B Milimeter-wave power sensor | Frequency range | 325GHz-500GHz | |
| Power range | -30dBm～+20dBm | ||
| Maximum SWR | 1.8 | ||
| Connector type | Standard square wave-guide | ||
Peak power sensor
| 81702DPeakpower sensor | Frequency range | 50MHz～18GHz | |
| Pulse power range | -20dBm～+20dBm | ||
| Rise time | ≤10ns（frequency carrier ＞500MHz） | ||
| Maximum SWR | 50MHz～2GHz 2GHz～18GHz | 1.15 1.26 | |
| Calibration factor uncertainty | 50MHz～18GHz | ±5.0% | |
| Connector type | Type-N（m） | ||
| 81702EPeakpower sensor | Frequency range | 500MHz～26.5GHz | |
| Pulse power range | -20dBm～+20dBm | ||
| Rise time | ≤10ns | ||
| Maximum SWR | 500MHz～2GHz 2GHz～18GHz 18GHz～26.5GHz | 1.15 1.26 1.35 | |
| Calibration factor uncertainty | 500MHz～18GHz 18GHz～26.5GHz | ±5.0% ±6.0% | |
| Connector type | 3.5mm（m） | ||
| 81702FPeakpower sensor | Frequency range | 500MHz～40GHz | |
| Pulse power range | -20dBm～+20dBm | ||
| Rise time | ≤10ns | ||
| Maximum SWR | 500MHz～2GHz | 1.15 1.26 1.35 1.50 | |
| Calibration factor uncertainty | 500MHz～18GHz | ±5.0% ±6.0% ±7.5% | |
| Connector type | 2.4mm（m） | ||
| 81702LPeakpower sensor | Frequency range | 500MHz～67GHz | |
| Pulse power range | -20dBm～+20dBm | ||
| Rise time | ≤10ns | ||
| Maximum SWR | 500MHz～2GHz 2GHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz 40GHz～67GHz | 1.15 1.26 1.35 1.50 1.78 | |
| Calibration factor uncertainty | 500MHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz 40GHz～67GHz | ±5.0% ±6.0% ±7.5% ±8.5% | |
| Connector type | 1.85mm（m） | ||
| 81703DPeakpower sensor | Frequency range | 50MHz～18GHz | |
| Pulse power range | -40dBm～+20dBm | ||
| Rise time | ≤100ns | ||
| Maximum SWR | 50MHz～2GHz2GHz～18GHz1.151.26 | ||
| Calibration factor uncertainty | 50MHz～18GHz±5.0% | ||
| Connector type | Type-N（m） | ||
| 81703EPeakpower sensor | Frequency range | 500MHz～26.5GHz | |
| Pulse power range | -40dBm～+20dBm | ||
| Rise time | ≤100ns | ||
| Maximum SWR | 500MHz～2GHz 2GHz～18GHz 18GHz～26.5GHz | 1.15 1.26 1.35 | |
| Calibration factor uncertainty | 500MHz～18GHz 18GHz～26.5GHz | ±5.0% ±6.0% | |
| Connector type | 3.5mm（m） | ||
| 81703FPeakpower sensor | Frequency range | 500MHz～40GHz | |
| Pulse power range | -40dBm～+20dBm | ||
| Rise time | ≤100ns | ||
| Maximum SWR | 500MHz～2GHz 2GHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz | 1.15 1.26 1.35 1.50 | |
| Calibration factor uncertainty | 500MHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz | ±5.0% ±6.0% ±7.5% | |
| Connector type | 2.4mm（m） | ||
| 81703LPeak power sensor | Frequency range | 500MHz～67GHz | |
| Pulse power range | -40dBm～+20dBm | ||
| Rise time | ≤100ns | ||
| Maximum SWR | 500MHz～2GHz 2GHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz 40GHz～67GHz | 1.15 1.26 1.35 1.50 1.78 | |
| Calibration factor uncertainty | 500MHz～18GHz 18GHz～26.5GHz 26.5GHz～40GHz 40GHz～67GHz | ±5.0% ±6.0% ±7.5% ±8.5% | |
| Connector type | 1.85mm（m） | ||
