1433 Series Signal Generator
SKU : 1433 Series Signal Generator
Product Overview

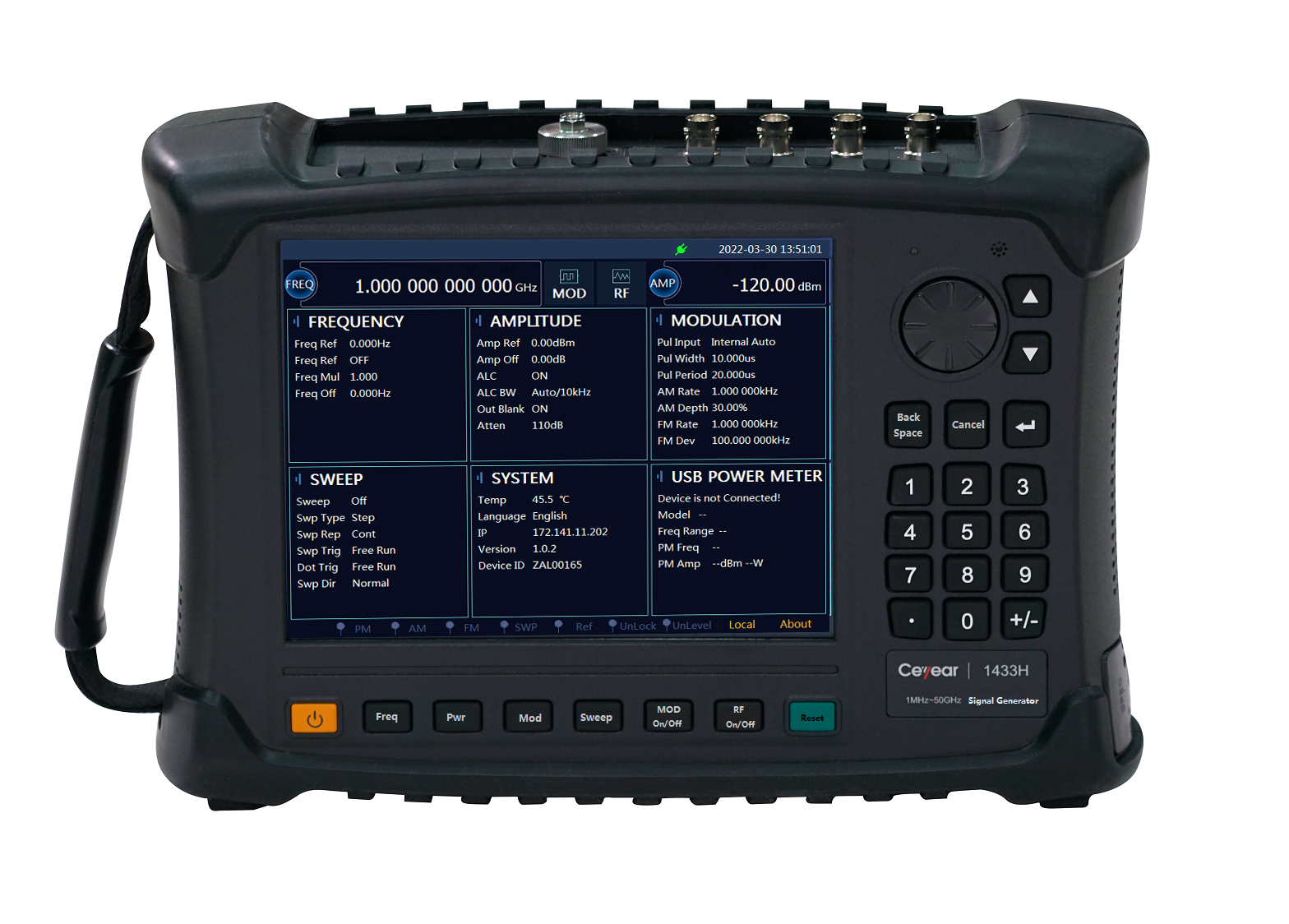

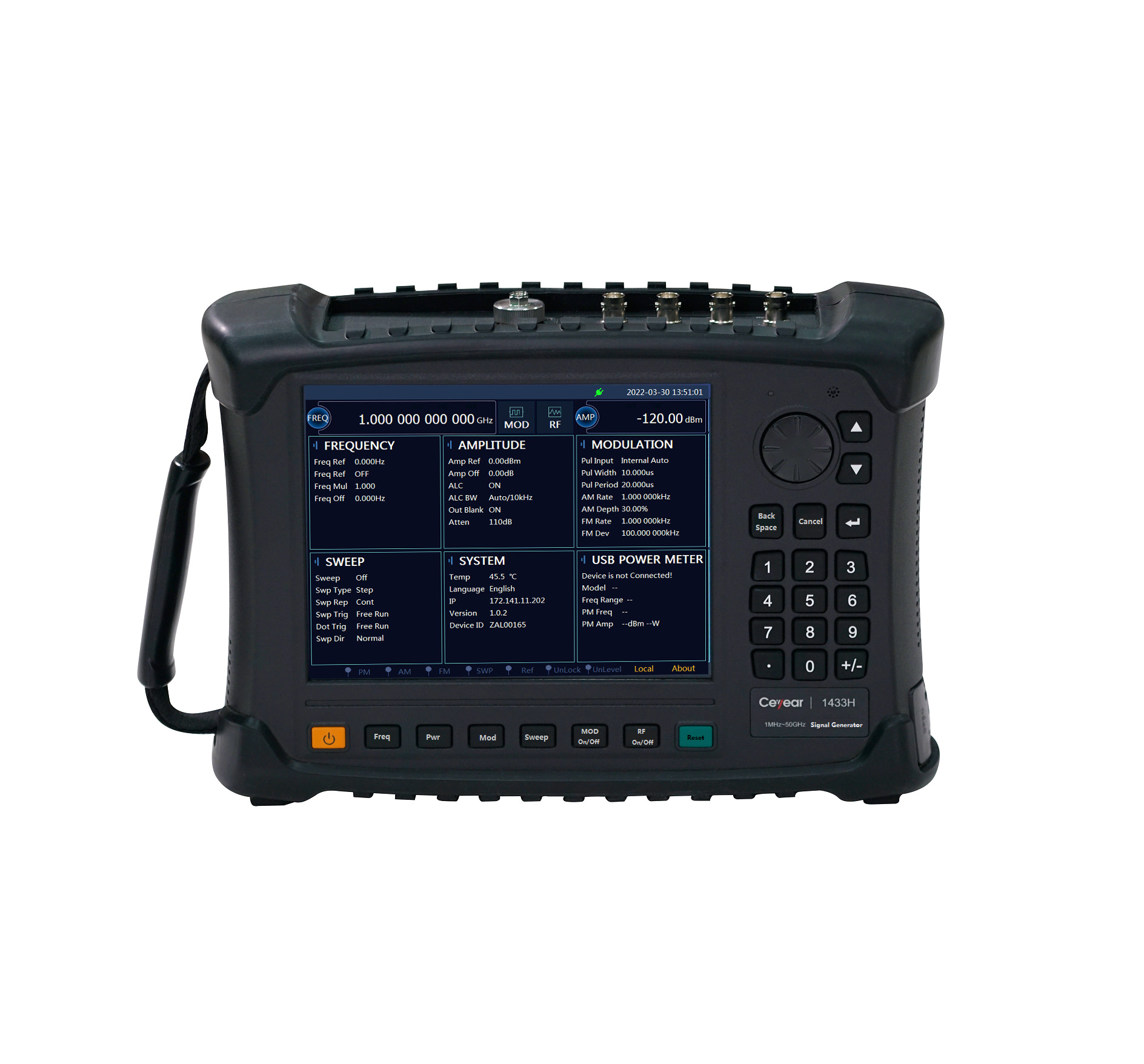

1433 Series signal generator is a hand-held instrument specially designed for field testing by Ceyear Technology Co., Ltd. It has the functions of CW signal output, FM/AM/Pulse/PM modulation, large dynamic range amplitude adjustment, step/list sweep etc. The integrated design of 8.4-inch large capacitive touch screen is convenient for users’ operation.
1433 series signal generator has the characteristics of small size, flexible power supply and good working environment adaptability, which is very suitable for on-site use. It can be applied to the field installation, debugging and daily maintenance of fault diagnosis of electronic integrated system, receiver performance test, communication, navigation and other equipment test.
Product Features
Wider frequency coverage: from 1MHz to 50GHz
Higher frequency resolution: 0.1Hz
Excellent phase noise performance: -110dBc/Hz@10kHz frequency offset @10GHz carrier(typical）
Various auxiliary test interfaces: reference input/output, pulse input, monitoring output, synchronization output etc.
Convenient and fast user operation experience: 8.4-inch large screen with bright LCD, convenient capacitive touch screen operation, integrated design of LCD and touch screen
Strong environmental adaptability: the working temperature range is -10℃~50℃
Flexible power supply mode: can be powered by battery or power adapter
Features
Wider frequency coverage
The frequency range of 1433 series signal generator is 1MHz to 20GHz/26.5GHz/40GHz/50GHz, the serialization minimum frequency is as low as 1MHz, and the highest frequency is as high as 50GHz, which can meet the needs of wide-band testing.

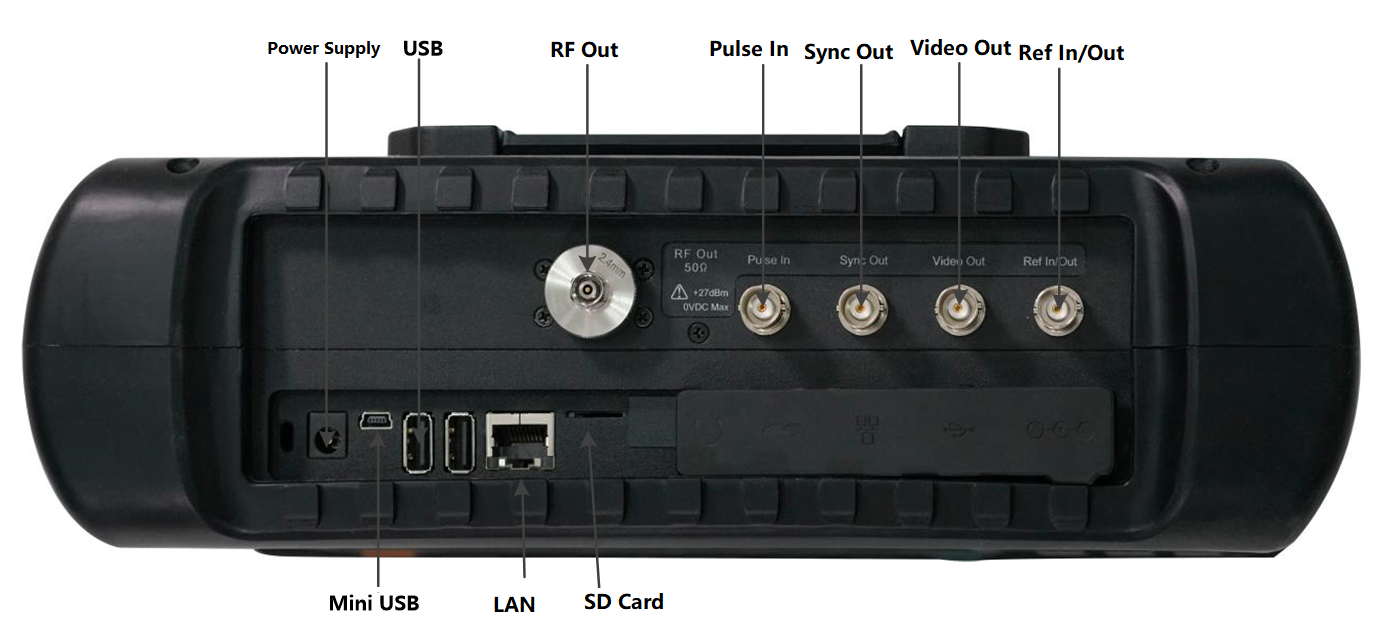

Various auxiliary test interfaces

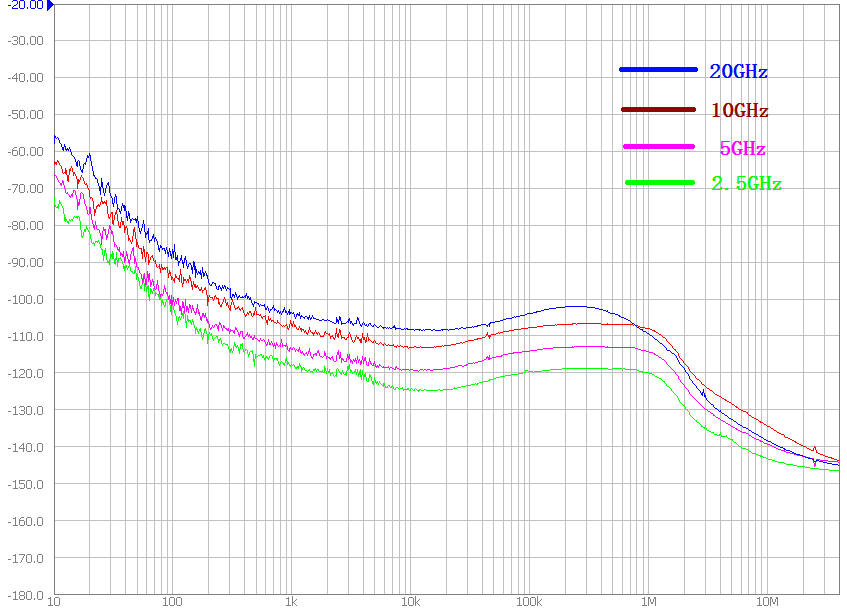

Excellent phase noise performance
1433 Series signal generator SSB phase noise is better than -110dBc/Hz@10kHz frequency offset @10GHz carrier(typical）, which can meet the test requirements of most application scenarios.

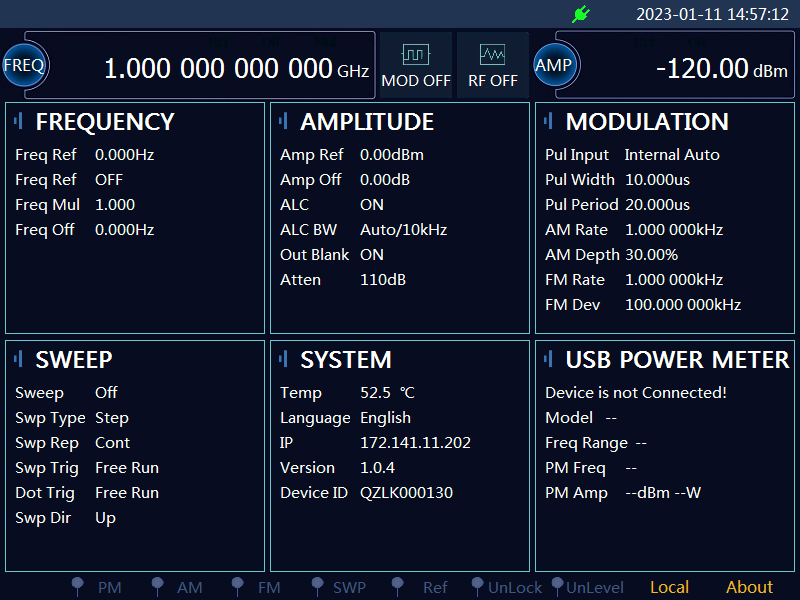

Convenient and fast user operation experience
8.4-inch large screen with high-brightness LCD, 800×600 pixel resolution, convenient capacitive touch screen operation, multi-window display, clear display of instrument setting parameters and status information, providing convenient and fast user operation experience.
Typical Application
The 1433 series signal generator has a wide output frequency and power range, and has a variety of analog modulation functions. It can simulate and generate jamming signals in the actual combat environment during the test of the anti-jamming performance of the electronic system, which can be used for the test of the anti-jamming performance of the electronic system.
For radar and other electronic equipment receiving performance testing and troubleshooting applications, 1433 series signal generators provide CW, analog modulated signal output, and can provide excitation signal simulation.
For the field test application of the antenna pattern, the 1433 series signal generator outputs a signal with known fixed amplitude, which is used to test the indicator of the transmitting antenna pattern.
specifications
1. Main Functions
l CW signal output function
l FM/AM/Pulse modulation function
l Step and List sweep function
l Unstable amplitude and Unlock alarm function
l Support LAN and USB interface program control function
2. Specifications
| Frequency Characteristics | |||
| Frequency Range | 1433D:1MHz~20GHz | Frequency | N（internal YO harmonic number） |
| 1MHz≤f＜2.35GHz | 1/2 | ||
| 2.35GHz≤f＜2.5GHz | 1/8 | ||
| 2.5GHz≤f＜5GHz | 1/4 | ||
| 5GHz≤f≤10GHz | 1/2 | ||
| 10GHz＜f≤20GHz | 1 | ||
| 20GHz＜f≤40GHz | 2 | ||
| 40GHz＜f≤50GHz | 4 | ||
| Frequency resolution | 0.1Hz | ||
| Internal timebase | Aging rate | ±0.5×10-6/year | |
| Temperature effects | ±0.3×10-6（-10℃~50℃，versus 25℃±5℃） | ||
| Initial calibration accuracy | ±0.5×10-6 | ||
| Reference Output | Frequency | 10MHz~100MHz，step 1MHz | |
| Power | -5dBm~+10dBm，impedance: 50Ω | ||
| Reference Input | Frequency | 10MHz | |
| Power | ＞0dBm，50Ω impedance | ||
| Sweep characteristics | |||
| Sweep features | Sweep mode | Step/List | |
| Sweep points | 2 to 1601 | ||
| Dwell time | 10ms to 100s | ||
| Trigger mode | Auto/manual | ||
| Level characteristics | |||
| Stable output power range(25℃±10℃，CW mode) | 1MHz≤f＜2.5GHz | -120dBm~+5dBm | |
| 2.5GHz≤f≤10GHz | -120dBm~+10dBm | ||
| 10GHz＜f≤20GHz | -120dBm~+5dBm | ||
| 20GHz＜f≤40GHz | -120dBm~+5dBm | ||
| 40GHz＜f≤50GHz | -120dBm~0dBm | ||
Level accuracy （25℃±10℃） | Frequency range | Standard package | |
| Power accuracy （25±10°C） | -10dBm＜P≤Maximum stable output power | ±1.0dB | |
| -60dBm＜P≤-10dBm | ±1.5dB | ||
| -90dBm≤P≤-60dBm | ±1.8dB | ||
| Output impedance | 50Ω（Rating） | ||
| SWR | 1MHz≤f≤20GHz | ＜1.80 | |
| 20GHz＜f≤40GHz | ＜2.00 | ||
| 40GHz＜f≤50GHz | ＜2.50 | ||
| Maximum reverse power | +27dBm（0V DC）（Rating） | ||
| Spectral purity（specification is point frequency without modulated mode） | |||
| Harmonics （Measured at +5dBm or maximum specified power, whichever is lower） | 1MHz≤f≤1.5GHz | ≤-40dBc | |
| 1.5GHz＜f≤2.5GHz | ≤-30dBc | ||
| 2.5GHz＜f≤19GHz | ≤-40dBc | ||
| 19GHz＜f≤25GHz | ≤-30dBc | ||
| 25GHz＜f≤50GHz | ≤-35dBc（typical） | ||
| Non-harmonics （0dBm >10kHz offset） | 1MHz≤f＜2.5GHz | ≤-54dBc | |
| 2.5GHz≤f＜5GHz | ≤-60dBc | ||
| 5GHz≤f≤10GHz | ≤-56dBc | ||
| 10GHz＜f≤20GHz | ≤-50dBc | ||
| 20GHz＜f≤38GHz | ≤-44dBc | ||
| 38GHz＜f≤50GHz | ≤-40dBc | ||
| SSB Phase noise（at maximum stable output power） | 1MHz≤f＜2.35GHz | ≤-82dBc/Hz@100Hz | |
| ≤-98dBc/Hz@1kHz | |||
| ≤-108dBc/Hz@10kHz | |||
| ≤-106dBc/Hz@100kHz | |||
| 2.35GHz≤f＜2.5GHz | ≤-94dBc/Hz@100Hz | ||
| ≤-110dBc/Hz@1kHz | |||
| ≤-120dBc/Hz@10kHz | |||
| ≤-118dBc/Hz@100kHz | |||
| SSB Phase noise（at maximum stable output power） | 2.5GHz≤f＜5GHz | ≤-88dBc/Hz@100Hz | |
| ≤-104dBc/Hz@1kHz | |||
| ≤-114dBc/Hz@10kHz | |||
| ≤-112dBc/Hz@100kHz | |||
| 5GHz≤f≤10GHz | ≤-82dBc/Hz@100Hz | ||
| ≤-98dBc/Hz@1kHz | |||
| ≤-108dBc/Hz@10kHz | |||
| ≤-106dBc/Hz@100kHz | |||
| 10GHz＜f≤20GHz | ≤-76dBc/Hz@100Hz | ||
| ≤-92dBc/Hz@1kHz | |||
| ≤-102dBc/Hz@10kHz | |||
| ≤-100dBc/Hz@100kHz | |||
| 20GHz＜f≤40GHz | ≤-70dBc/Hz@100Hz | ||
| ≤-86dBc/Hz@1kHz | |||
| ≤-96dBc/Hz@10kHz | |||
| ≤-94dBc/Hz@100kHz | |||
| 40GHz＜f≤50GHz | ≤-68dBc/Hz@100Hz | ||
| ≤-84dBc/Hz@1kHz | |||
| ≤-94dBc/Hz@10kHz | |||
| ≤-92dBc/Hz@100kHz | |||
| Modulation Characteristics | |||
| Pulse modulation（Frequency >10MHz） | On/off ratio | ≥80dB | |
| Rise/fall times | ≤30ns | ||
| minimum pulse width ALC ON | 1μs（Deviation±50ns） | ||
| minimum pulse width ALC OFF | 100ns（Deviation±20ns） | ||
| Amplitude modulation（Frequency >10MHz） | Modulation type | Linear modulation、exponent modulation | |
| Modulation rate（3dB bandwidth） | DC~20kHz | ||
| Maximum depth | Linear closed loop：≥90.0% | ||
| Exponent closed loop：≥20.0dB | |||
| Linear AM accuracy | ±（5％× setting depth＋1%）（at 1kHz modulation rate） | ||
| Exponent AM accuracy | ±（5％× setting depth＋1dB）（at 1kHz modulation rate） | ||
| Frequency modulation（Frequency >10MHz） | Modulation rate（3dB bandwidth） | DC~20kHz | |
| Maximum deviation | N×800kHz（N: YO harmonic number），accuracy: ±10%（at 1kHz modulation rate） | ||
| FM deviation accuracy | ±3%（at 1kHz，100kHz offset，300Hz~3kHz demodulation bandwidth） | ||
| Phase modulation（Frequency >10MHz） | Modulation rate（3dB bandwidth） | DC~20kHz | |
| Maximum deviation | N×20.0rad（N: YO harmonic number），accuracy±10%（at 1kHz modulation rate） | ||
| φM deviation accuracy | ±(3%×setting deviation +0.01rad)( at 1kHz modulation rate，deviation N×10.0rad) | ||
| General characteristics | |||
| RF Output Port | 1433D | N（female），impedance: 50Ω | |
| 1433E | 2.4mm（male），impedance: 50Ω | ||
| 1433F | 2.4mm（male），impedance: 50Ω | ||
| 1433H | 2.4mm（male），impedance: 50Ω | ||
| Dimensions （W×H×D） | 314mm×218mm×91mm （excluding handle, foot mat and footing） | ||
| Weight | ≤5.5kg（including battery） | ||
| Power Supply | Power adapter | Input：100~240V、50/60Hz AC | |
| Output: 15VDC, 4A | |||
| Lithium electronic battery | 10.8V，≥8800mAh | ||
| Power Consumption | ≤45W（Battery charging is not included） | ||
| Temperature Range | Operating temperature | -10°C~+50°C（battery charging temperature: 0°C~+45°C） | |
| Storage temperature | -40°C~+70°C（battery storage temperature: -20℃~+60°C） | ||
| Other interface | Pulse input | BNC（female） | |
| Synchronization output | BNC（female） | ||
| Monitoring output | BNC（female） | ||
| Reference input/output | BNC（female） | ||
| Note: Ratings refer to expected performance, or describe product performance that is useful in the product but not covered by the product warranty. | |||
Host Model
| Numbering | Name | Describe |
| 1433H | Signal Generator | 1MHz～50GHz |
| 1433F | Signal Generator | 1MHz～40GHz |
| 1433E | Signal Generator | 1MHz～26.5GHz |
| 1433D | Signal Generator | 1MHz～20GHz |
Option Model
| Numbering | Name | Describe | Optional |
| 1433-001 | User Manual (Chinese) | ||
| 1433-002 | User Manual (English) | ||
| 1433-003 | Programming Manual (Chinese) | ||
| 1433-004 | Programming Manual (English) | ||
| 1433-S01 | USB Power Meter Option(software) | Provide USB Power Measurement Function (Requires USB Power sensor:H06~H13) | |
| 1433-H01 | Optional Accessories of English Version | English Signs、Keys、Menu | |
| 1433-H02 | Power Adapter | Power Adapter | |
| 1433-H03 | Rechargeable Lithium Ion Battery | Standby Battery | |
| 1433-H04 | Purple Cat5e Cable | Point to Point, 2 Meters | |
| 1433-H05 | Micro SD Card | Class4, Capacity: 8G | |
| 1433-H06 | 87230 USB CW Power Sensor | 9kHz~6GHz，for CW power measurement（S01 is optional） | |
| Option ID | Description | Function | |
| 1433-H07 | 87231 USB CW Power Sensor | 10MHz~18GHz，for CW power measurement（S01 is optional） | |
| 1433-H08 | 87232 USB CW Power Sensor | 50MHz~26.5GHz，for CW power measurement（S01 is optional） | |
| 1433-H09 | 87233 USB CW Power Sensor | 50MHz~40GHz，for CW power measurement（S01 is optional） | |
| 1433-H10 | 87234D USB Peak Power Sensor | 50MHz~18GHz，for Peak power measurement（S01 is optional） | |
| 1433-H11 | 87234E USB Peak Power Sensor | 50MHz~26.5GHz，for Peak power measurement（S01 is optional） | |
| 1433-H12 | 87234F USB Peak Power Sensor | 50MHz~40GHz，for Peak power measurement（S01 is optional） | |
| 1433-H13 | 87234L USB Peak Power Sensor | 500MHz~67GHz，for Peak power measurement（S01 is optional） | |
| 1433-H14 | Functional Bag | Protect the Instrument | |
| 1433-H15 | Backpack | Easy to Carry | |
| 1433-H16 | Safety Instrument Carrying Case | High strength light weight packing case with handle for transportation | |
| 1433D-JL | Calibration Service | Metrological calibration services, provides metrological reports | |
| 1433E-JL | Calibration Service | Metrological calibration services, provides metrological reports | |
| 1433F-JL | Calibration Service | Metrological calibration services, provides metrological reports | |
| 1433H-JL | Calibration Service | Metrological calibration services, provides metrological reports | |
| 1433D-EWT1 | Extended Warranty-1 year | Extended 1-year out of standard warranty, 2 optional for 2-year extended warranties, and so on, service does not include calibration, one-way shipping only | |
| 1433E-EWT1 | Extended Warranty-1 year | Extended 1-year out of standard warranty, 2 optional for 2-year extended warranties, and so on, service does not include calibration, one-way shipping only | |
| 1433F-EWT1 | Extended Warranty-1 year | Extended 1-year out of standard warranty, 2 optional for 2-year extended warranties, and so on, service does not include calibration, one-way shipping only | |
| 1433H-EWT1 | Extended Warranty-1 year | Extended 1-year out of standard warranty, 2 optional for 2-year extended warranties, and so on, service does not include calibration, one-way shipping only |
