3671 Series Vector Network Analyzer
SKU : 3671 Series Vector Network Analyzer
Product Overview

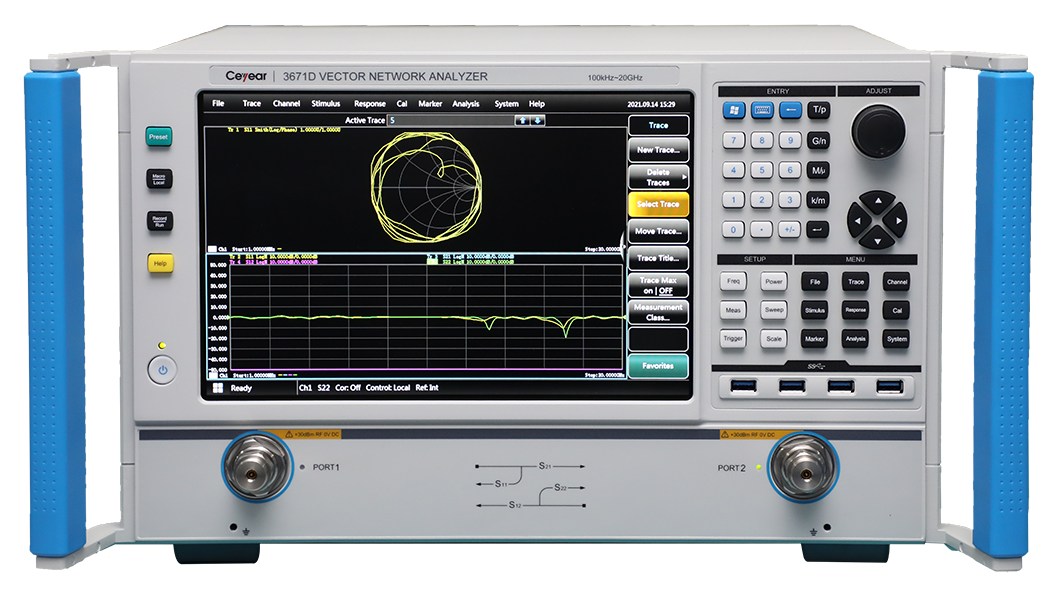

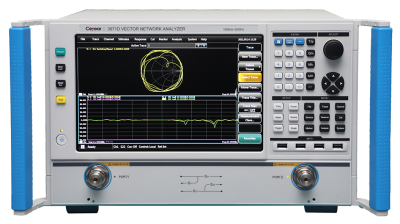

3671 series vector network analyzer include 3671C (100 kHz~14GHz), 3671D (100 kHz~20GHz), 3671E (100 kHz~26.5GHz), 3671G (10MHz~43.5GHz). 3671series network analyzer provides frequency response, Single-port, response isolation, enhanced response, full-dual port, electronic calibration etc. Offer various display formats, such as logarithmic amplitude, linear amplitude, phase, group delay, Smith chart and polar coordinates. It designed with several standard interfaces, such as: USB, LAN, GPIB, VGA, and HDMI interface. It can accurately measure the amplitude frequency characteristics and phase frequency characteristics and group delay characteristics of microwave network. 3671 series vector network analyzers retain the features of high-end vector network analyzers, including performance indicators, instrument appearance, display effect, software interface, etc., while controlling the volume, weight, wind noise and other aspects of the instrument to create a good experience for users. The product can be widely used in communication and other fields, which are indispensable test equipment in university scientific research.
The product has such functions as error calibration, time domain, fixture simulator, automatic fixture removal, advanced time domain analysis, with many display formats such as logarithm magnitude, linear magnitude, standing wave, phase, group delay, Smith pie chart, polar coordinates, etc. for multi-channel and multi-window display, as well as many interfaces such as USB, LAN, HDMI and DP. It can quickly and accurately measure the amplitude, phase, and group delay characteristics of the S-parameter of the DUT, and has efficient and powerful error correction capability.
Features
Flexible calibration type, compatible with multiple calibration kits
3671 series vector network analyzer provides different types of calibration such as automated calibration, guided calibration (through response calibration, through response and isolation, single port calibration, enhanced response calibration, full two-port SOLT calibration, TRL calibration can be achieve by mechanical calibration kits), electrical calibration (ECal) etc. Users can choose calibration types based on the test requirements, which greatly facilitates testing on devices with different interfaces.
Multiple windows to display all measuring channels
| Frequency characteristics | ||
| Frequency Range | 100kHz~14/20/26.5GHz | |
| Frequency Resolution | 0.1Hz | |
| Frequency Accuracy | ±1×10-7(23℃±3℃) | |
| Port Output Characteristic | ||
| Max Output Power | 2-port | 4-port |
+5dBm | +3dBm | |
| Power Sweep Range | 40dB(100kHz~10MHz) | 40dB(100kHz~10MHz) |
| Network parameter characteristics | ||
| System Dynamic Range (10Hz intermediate frequency bandwidth) | 2-port | 4-port |
| 102dB (100kHz~10MHz) 132dB (10MHz~4GHz) 133dB (4GHz~10GHz) 125dB (10GHz~14GHz) 124dB (14GHz~20GHz) 120dB (20GHz~24GHz) 115dB (24GHz~26.5GHz) | 102dB (100kHz~10MHz) 132dB (10MHz~4GHz) 130dB (4GHz~10GHz) 120dB (10GHz~14GHz) 119dB (14GHz~20GHz) 115dB (20GHz~24GHz) 110dB (24GHz) | |
| Effective Directivity | 48dB(100kHz~2GHz) 44dB(2GHz~20GHz) 44dB(20GHz~26.5GHz) | |
| Effective Source Match | 40dB(100kHz~2GHz) 30dB(2GHz~20GHz) 30dB(20GHz~26.5GHz) | |
| Effective Load Match | 48dB(100kHz~2GHz) 44dB(2GHz~20GHz) 44dB(20GHz~26.5GHz) | |
| Reflection Tracking (1kHz intermediate frequency bandwidth) | ±0.04dB(100kHz~100MHz) ±0.05dB(100MHz~20GHz) ±0.05dB(20GHz~26.5GHz) | |
Transmission Tracking | ±0.10dB(100kHz~100MHz) ±0.08dB(100MHz~20GHz) ±0.10dB(20GHz~26.5GHz) | |
| Others | ||
| Amplitude Trace (-5dBm,1kHz intermediate frequency bandwidth) | 0.010 dB rms (100kHz~50MHz) 0.005 dB rms (50MHz~500MHz) 0.001 dB rms (500MHz~14GHz) 0.001 dB rms (14GHz~20GHz) 0.002 dB rms (20GHz~26.5GHz) | |
| Phase trace noise (-5dBm,1kHz intermediate frequency bandwidth) | 0.100 deg rms (100kHz~50MHz) 0.040 deg rms (50MHz~500MHz) 0.030 deg rms (500MHz~14GHz) 0.040 deg rms (14GHz~20GHz) 0.040 deg rms (20GHz~26.5GHz) | |
| Intermediate Frequency Bandwidth | 1Hz~30MHz | |
| Amplitude Display Resolution | 0.001dB/div | |
| Phase Display Resolution | 0.01°/div | |
| Setting Requirement of Reference Level Amplitude | -500~+500dB | |
| Setting Requirement of Reference Level Phase | -500~+500° | |
| Sweep Time (Full frequency sweep, 201 points, 600kHz if bandwidth, calibration off) | 43ms | |
| Max. Sweep Point | 200001points | |
| General Characteristics | ||
| Port connection | 3.5mm(male) | |
| System Impedance | 50Ω | |
| Number Of Measuring Ports | 2/4 ports | |
| Peripheral Interface | USB,GPIB,VGA,LAN,HDMI interface | |
| Operating System | Windows 7 | |
| Display | 12.1-inch 16:10 screen (equipped with capacitive touchscreen) | |
| Size | W´H´D≈426mm×266mm×400mm(No soles, no handles) W´H´D≈516mm×280mm×490mm(include sole ) | |
| Max. Power Consumption | 300W | |
| Power Supply | 50Hz 220V or 50Hz/60Hz 110V AC | |
| Max. Weight | 25kg | |
