1466 Analog Signal Generator

SKU : 1466 Analog Signal Generator

Categories: Products, Microwave and Millimeter-wave Measurement Instruments, Signal Generator

Product description

Product Overview

Ceyear 1466 analog signal generator is created to meet the varied test requirements with top performance and functionality, especially in higher frequencies, higher signal spectral purity, higher output power, and dual-RF channels. Also rich built-in functions such as analog scanning, analog modulation and pulse modulation could bring more convenience to daily testing. Friendly designed human-computer interaction, including graphics guided operation, browser based remote control, power meter automatic connection and identification, SCPI command recording, as well as interface user customization could speed up the test operation. The Ceyear 1466 analog signal generator is an ideal choice for high standard testing in components, modules, machines and systems.

Features

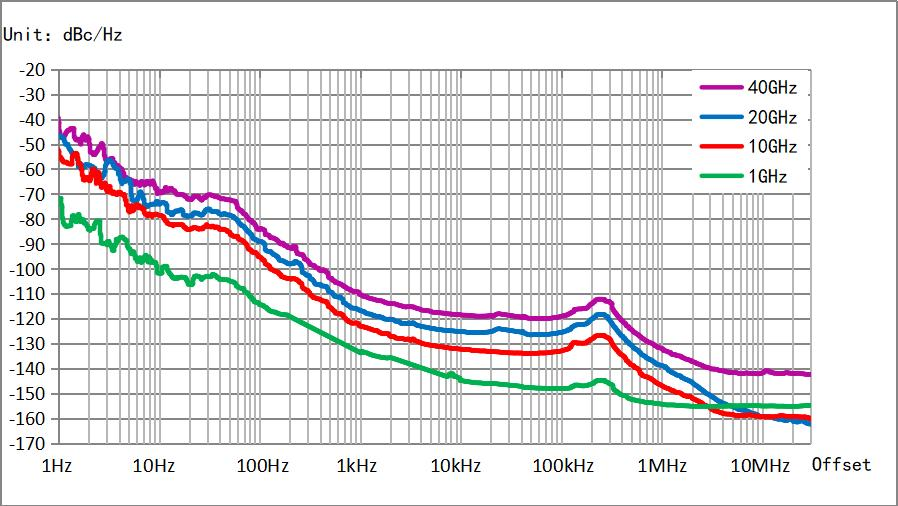

Excellent spectral purity, making cutting-edge testing easier

Ceyear 1466 analog signal generator supports high spectral purity output signal, SSB phase noise: -145dBc/Hz @10kHz offset at 1GHz carrier, -132dBc/Hz @10kHz offset at 10GHz carrier, Wideband noise: -161dBc/Hz @30MHz offset at 20GHz carrier, spurious <-80dBc at 10GHz carrier, harmonics <-55dBc. The purer signal makes you no longer troubled by interfering signals when testing microwave and millimeter wave components, systems and OTA.

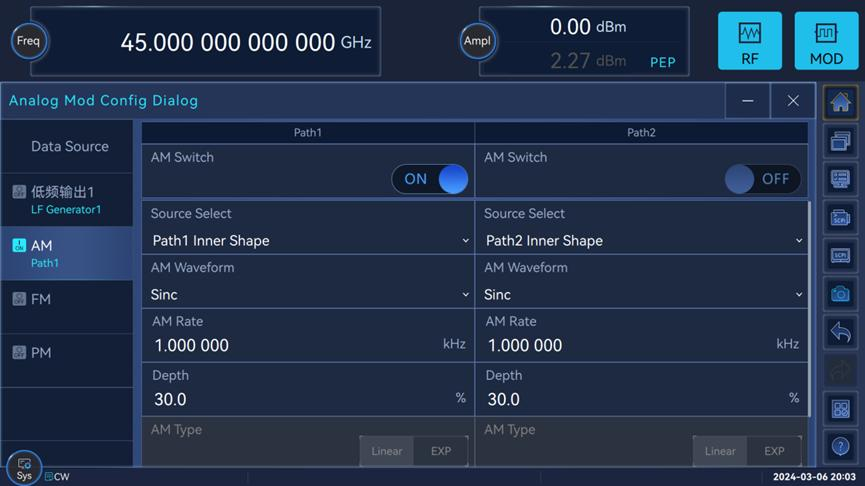

Full range of analog modulation

Amplitude modulation, frequency modulation, phase modulation and pulse modulation are supported. It has complex pulse modulation functions such as double pulse, pulse train, PRF jittering, PRF staggering, and PRF sliding.

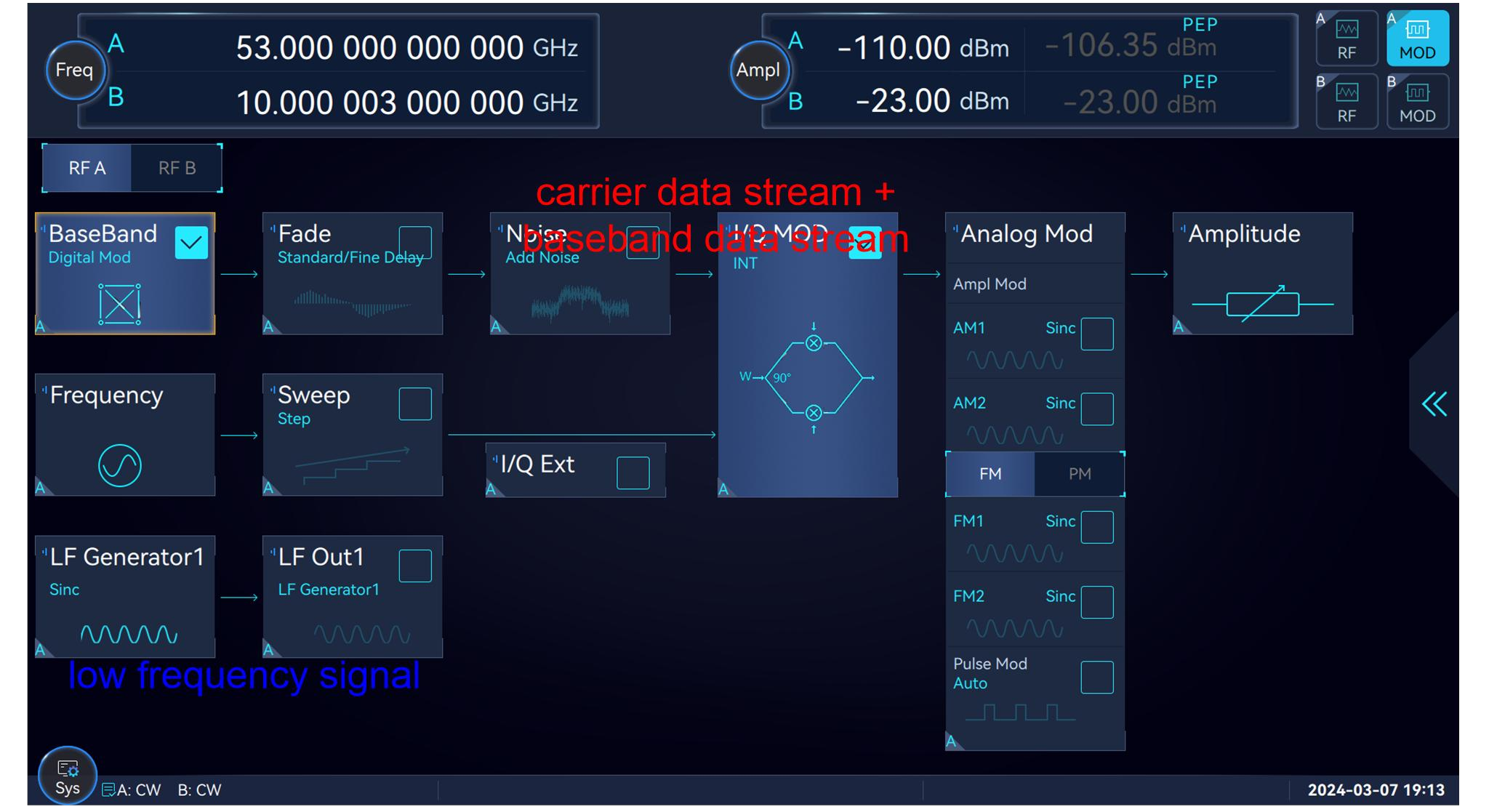

Touch screen display with graphics guided operation

The 11.6-inch high-resolution touch screen is used to clearly display the main parameters and instrument status information, and with the signal flow diagram guidance interface, the display is more intuitive and the interaction is more friendly.

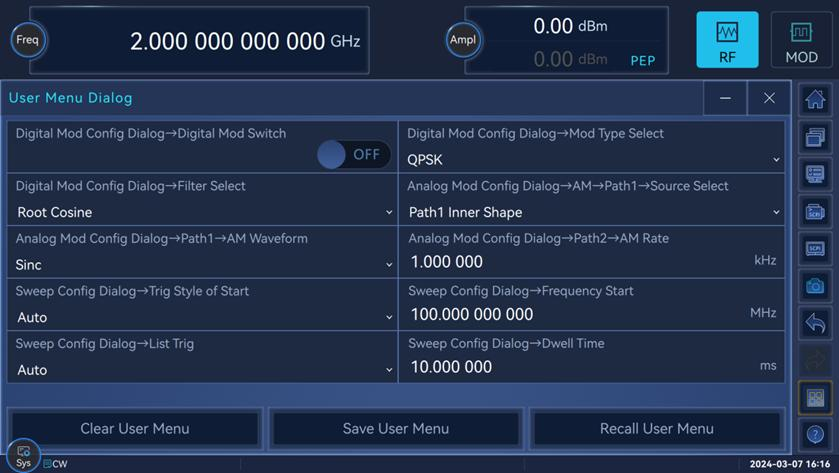

Flexible user control interface

Support user-defined menus, tailor-made personalized user control interface according to test habits, realize multi-function operations in one window, and avoid the trouble of too deep menus and repeated searches.

SCPI command real-time recording and operation project automatic builder

Not only you can export recorded SCPI commands with one click, but also automatically generate VS (C++, C#), Qt, Matlab, LabView program control example projects, making program control easier.

110GHz coaxial frequency coverage, easier and more accurate testing

Ceyear 1466 analog signal generator frequency range covers 6kHz to 110GHz. Through integration with Ceyear 8240X analog signal source extender, frequency range can be expanded to 750GHz. It is an efficient tool for millimeter-wave 5G communication RF conformance testing .

Cross-platform web browser based remote control

Cross-platform client and browser access control. Support multiple clients to connect at the same time, and the working status of the instrument is refreshed synchronously. Support web browser based remote control for mobile devices.

specifications

Frequency characteristics
Frequency	1466C:6kHz to 13GHz	Frequency range		N1
	1466D:6kHz to 20GHz	6kHz≤f≤10MHz		-
	1466E:6kHz to 33GHz	10MHz<f≤50MHz		-
	1466G:6kHz to 45GHz	50MHz<f≤62.5MHz		1/256
	1466H:6kHz to 53GHz	62.5MHz<f≤125MHz		1/128
	1466L:6kHz to 67GHz	125MHz<f≤250MHz		ม.ค.-64
	1466N:6kHz to 90GHz	250MHz<f≤500MHz		ม.ค.-32
	1466P:6kHz to 110GHz	500MHz<f≤1GHz		ม.ค.-16
		1GHz<f≤2GHz		01-ส.ค.
		2GHz<f≤4GHz		01-เม.ย.
		4GHz<f≤8GHz		01-ก.พ.
		8GHz<f≤20GHz		1
		20GHz<f≤40GHz		2
		40GHz<f≤67GHz		4
		100GHz<f≤110GHz		6
Resolution	0.001Hz
Switching speed	<15ms
Aging rate(typ.)	±5×10 ^-10 /day after 30 days warm-up
Reference Output	Frequency		10MHz
Reference Output	Power		>+4dBm, to 50Ω load
Reference Input	Frequency		1 to 100MHz,step:1Hz
Reference Input	Power		-5dBm to +10dBm,impedance: 50Ω
Sweep properties
Sweep mode	Step sweep List sweep Ramp(analog) sweep（option S15），
Sweep mode	Power sweep(option S16)
Ramp(analog) sweep	Maximum sweep rate	f>4GHz	400MHz/ms
Ramp(analog) sweep	Frequency accuracy	±0.05% of span (at 100ms sweep time, for sweep spans less than maximum values as 100ms)
Power characteristics
Minimum output power	Model	Standard	Option H01-90/120/130
	1466C/D/E/G	-10dBm(settable -20dBm)	Option H01-130
			6kHz≤f≤100kHz
			-90.0dBm(settable -150dBm)
			f > 100kHz
			-120.0dBm(settable -150dBm)
	1466H/L	-10dBm(settable -20dBm)	Option H01-90:
			-90.0dBm(settable -110dBm)
			Option H01-120:
			-90.0dBm(settable -140dBm)
	1466N/P	-10dBm(settable -20dBm)	Option H01-50:
	1466N/P	-10dBm(settable -20dBm)	-50.0dBm(settable -70dBm)
Maximum output power(CW, 25±10°C)	1466C
	Configuration	Standard	Programmable step attenuator	High output power (option H05-	High output power and programmable step attenuator
			Option H01-	13/B13)	(option H01-130+H05-13;
			130/B130		H01-B130+H05-B13)
	Frequency
	Range
	6kHz≤f≤50MHz	≥+15.0	≥+15.0dBm	≥+15.0dBm	≥+15.0dBm
	6kHz≤f≤50MHz	dBm	≥+15.0dBm	≥+15.0dBm	≥+15.0dBm
	50MHz<f≤13GHz	≥+15.0	≥+15.0dBm	≥+20.0dBm	≥+20.0dBm
	50MHz<f≤13GHz	dBm	≥+15.0dBm	≥+20.0dBm	≥+20.0dBm
	1466D
	Configuration	Standard	Option H01-	Option H05-	Option H01-130+H05-20; H01-B130+H05-B20
			130/B130	20/B20



	Frequency
	range
	6kHz≤f≤50MHz	≥+15.0	≥+15.0dBm	≥+15.0dBm	≥+15.0dBm
	6kHz≤f≤50MHz	dBm	≥+15.0dBm	≥+15.0dBm	≥+15.0dBm
	50MHz<f≤20GHz	≥+15.0	≥+15.0dBm	≥+20.0dBm	≥+20.0dBm
	50MHz<f≤20GHz	dBm	≥+15.0dBm	≥+20.0dBm	≥+20.0dBm
	1466E
	Configuration	Standard	Option H01-
			130/B130
				Option H05-33/B33	Option H01-130+H05-33;
					H01-B130+H05-B33

	Frequency
	range
	6kHz≤f≤50MHz	≥+8.0	≥+8.0	≥+15.0dBm	≥+15.0dBm
	6kHz≤f≤50MHz	dBm	≥+8.0	≥+15.0dBm	≥+15.0dBm
	50MHz<f≤6GHz	≥+12.0	≥+12.0	≥+20.0dBm	≥+18.0dBm
	50MHz<f≤6GHz	dBm	≥+12.0	≥+20.0dBm	≥+18.0dBm
	6GHz<f≤18GHz	≥+12.0	≥+12.0	≥+18.0dBm	≥+18.0dBm
	6GHz<f≤18GHz	dBm	≥+12.0	≥+18.0dBm	≥+18.0dBm
	18GHz<f≤30GHz	≥+12.0	≥+12.0	≥+17.0dBm	≥+17.0dBm
	18GHz<f≤30GHz	dBm	≥+12.0	≥+17.0dBm	≥+17.0dBm
	30GHz<f≤33GHz	≥+12.0	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	30GHz<f≤33GHz	dBm	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	1466G
	Configuration	Standard	Option H01-	Option H05-45/B45	Option H01-130+H05-45;
			130/B130		H01-B130+H05-B45





	Frequency
	Range
	6kHz≤f≤50MHz	≥+8.0	≥+8.0dBm	≥+15.0dBm	≥+15.0dBm
	6kHz≤f≤50MHz	dBm	≥+8.0dBm	≥+15.0dBm	≥+15.0dBm
	50MHz<f≤6GHz	≥+12.0	≥+12.0dBm	≥+20.0dBm	≥+20.0dBm
	6GHz<f≤18GHz	≥+12.0	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	6GHz<f≤18GHz	dBm	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	18GHz<f≤30GHz	≥+12.0	≥+12.0dBm	≥+17.0dBm	≥+17.0dBm
	18GHz<f≤30GHz	dBm	≥+12.0dBm	≥+17.0dBm	≥+17.0dBm
	30GHz<f≤40GHz	≥+12.0	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	30GHz<f≤40GHz	dBm	≥+12.0dBm	≥+18.0dBm	≥+18.0dBm
	40GHz<f≤45GHz	≥+12.0	≥+12.0dBm	≥+13.0dBm	≥+13.0dBm
	40GHz<f≤45GHz	dBm	≥+12.0dBm	≥+13.0dBm	≥+13.0dBm
	1466H
	Configuration	Standard	Option H01-	Option H05-45/B53	Option H01-90/120+H05-53;
			90/120, H01-		H01-B90/120+H05-B53
	B90/120




Frequency	Frequency
Range	Range
6kHz≤f≤50MHz	≥+8.0dBm	≥+8.0dBm	≥+12.0dBm	≥+12.0dBm
50MHz<f≤20GHz	≥+8.0dBm	≥+8.0dBm	≥+17.0dBm	≥+16.0dBm
20GHz<f≤40GHz	≥+8.0dBm	≥+8.0dBm	≥+15.0dBm	≥+13.0dBm
40GHz<f≤53GHz	≥+8.0dBm	≥+8.0dBm	≥+20.0dBm	≥+18.0dBm
1466L
Configuration	Standard	Option H01-90/120, H01-B90/120	Option H05-67/B67
		90/120, H01-
		B90/120		Option H01-90/120+H05-53;
				H01-B90/120+H05-B53



Frequency
Range
6kHz≤f≤50MHz	≥+8.0dBm	≥+8.0dBm	≥+12.0dBm	≥+12.0dBm
50MHz<f≤20GHz	≥+8.0dBm	≥+8.0dBm	≥+17.0dBm	≥+16.0dBm
20GHz<f≤40GHz	≥+8.0dBm	≥+8.0dBm	≥+15.0dBm	≥+13.0dBm
40GHz<f≤53GHz	≥+8.0dBm	≥+8.0dBm	≥+20.0dBm	≥+18.0dBm
1466L
Configuration	Standard	Option H01-90/120, H01-B90/120

				Option H01-90/120+H05-53;
			Option H05-67/B67	H01-B90/120+H05-B53



Frequency
Range
6kHz≤f≤50MHz	≥+8.0dBm	≥+8.0dBm	≥+12.0dBm	≥+12.0dBm
50MHz<f≤20GHz	≥+8.0dBm	≥+8.0dBm	≥+17.0dBm	≥+16.0dBm
20GHz<f≤40GHz	≥+8.0dBm	≥+8.0dBm	≥+15.0dBm	≥+13.0dBm
40GHz<f≤53GHz	≥+8.0dBm	≥+8.0dBm	≥+20.0dBm	≥+18.0dBm
53GHz<f≤65GHz	≥+8.0dBm	≥+8.0dBm	≥+18.0dBm	≥+16.0dBm
65GHz<f≤67GHz	≥+8.0dBm	≥+8.0dBm	≥+15.0dBm	≥+12.0dBm
1466N
Configuration	Standard	Option H01-50/B50,	Option H05-90/B90	Option H01-50+H05-90;
				H01-B50+H05-B90




Frequency
Range
6kHz≤f≤50MHz	≥+5.0dBm	≥+5.0dBm	≥+8.0dBm	≥+8.0dBm
50MHz<f≤20GHz	≥+5.0dBm	≥+5.0dBm	≥+13.0dBm	≥+13.0dBm
20GHz<f≤40GHz	≥+5.0dBm	≥+5.0dBm	≥+12.0dBm	≥+10.0dBm
40GHz<f≤67GHz	≥3.0dBm	≥+3.0dBm	≥+10.0dBm	≥+8.0dBm
67GHz<f≤85GHz	≥0.0dBm	≥0.0dBm	≥+7.0dBm	≥+5.0dBm
85GHz<f≤90GHz	≥-5.0dBm	≥-5.0dBm	≥3.0dBm	≥0.0dBm
1466P
Configuration	Standard	Option H01-	Option H05-90/B90	Option H01-50+H05-90;
		50/B50,		H01-B50+H05-B90




Frequency
range
6kHz≤f≤50MHz	≥+5.0dBm	≥+5.0dBm	≥+8.0dBm	≥+8.0dBm
50MHz<f≤20GHz	≥+5.0dBm	≥+5.0dBm	≥+13.0dBm	≥+13.0dBm
20GHz<f≤40GHz	≥+5.0dBm	≥+5.0dBm	≥+12.0dBm	≥+10.0dBm
40GHz<f≤67GHz	≥3.0dBm	≥3.0dBm	≥+10.0dBm	≥+8.0dBm
67GHz<f≤85GHz	≥0.0dBm	≥0.0dBm	≥+7.0dBm	≥+5.0dBm
85GHz<f≤110GHz	≥-5.0dBm	≥-5.0dBm	≥+3.0dBm	≥+0.0dBm
Power accuracy (25±10°C）	Standard
	Power(dBm)	-10dBm<P≤+10dBm	+10dBm<P≤+25dBm	+25dBm<P
	Frequency	-10dBm<P≤+10dBm	+10dBm<P≤+25dBm	+25dBm<P
	6kHz≤f≤100kHz	±1.0dB	±1.0dB	—
	100kHz<f≤50MHz	±1.5dB	±1.0dB	—
	50MHz<f≤3GHz	±0.5dB	±0.5dB	±1.0dB
	3GHz<f≤20GHz	±0.9dB	±0.9dB	±1.2dB
	20GHz<f≤40GHz	±1.0dB	±1.0dB	—
	40GHz<f≤50GHz	±1.3dB	±1.3dB	—
	50GHz<f≤67GHz	±1.8dB	±1.8dB	—
	67GHz<f≤85GHz	±2.0dB	±2.0dB	—
	85GHz<f≤110GHz	±2.2dB	—	—
	H01-130/120/90/50/B130 programmable step attenuator option
	Power(dBm)	+120dBm<P≤-90dBm	-90dBm<P≤-50dBm	-50dBm<P≤+10dBm	+10dBm<P≤+25dBm	+25dBm<P
	Frequency	+120dBm<P≤-90dBm	-90dBm<P≤-50dBm	-50dBm<P≤+10dBm	+10dBm<P≤+25dBm	+25dBm<P
	6kHz≤f≤100kHz	—	±1.5dB	±1.0dB	±1.0dB	—
	100kHz<f≤50MHz	±1.5dB	±1.5dB	±1.0dB	±1.0dB	—
	50MHz<f≤3GHz	±1.2dB	±0.7dB	±0.5dB	±0.5dB	±1.0dB
	3GHz<f≤20GHz	±1.8dB	±0.9dB	±0.9dB	±0.9dB	±1.2dB
	20GHz<f≤40GHz	—	±1.2dB	±1.0dB	±1.0dB	—
	40GHz<f≤50GHz	—	±1.5dB	±1.3dB	±1.3dB	—
	50GHz<f≤67GHz	—	±2.0dB	±1.8dB	±1.8dB	—
	67GHz<f≤85GHz	—	—	±2.0dB	±2.0dB	—
	85GHz<f≤110GHz	—	—	±2.2dB	—	—
Power resolution	0.01dB
Temperature stability	0.02dB/°C (typ)
Output impedance	50Ω(Nom.)
VSWR(internal leveled)(typ)	100kHz≤f≤20GHz	＜1.6
	20GHz＜f≤40GHz	＜1.8
	40GHz＜f≤67GHz	＜2.0
	67GHz<f≤85GHz	<2.5
	85GHz<f≤110GHz	<3.0
Maximum reverse power	0.5W(0V DC)(nom)
Spectral purity characteristics
Harmonics (dBc at +10dBm or maximum specified output power, whichever is lower)	Frequency		Standard
	100kHz≤f≤3GHz		<-30dBc
	3GHz<f≤67GHz		<-55dBc
	67GHz<f≤110GHz		<-40dBc
Sub-harmonics(at +10dBm or maximum specified output power, whichever is lower)	6kHz≤f≤20GHz		<-80dBc
	20GHz<f≤40GHz		<-60dBc
	40GHz<f≤110GHz		<-50dBc
Non-harmonics(dBc at 0dBm, for offset >3kHz)	Frequency	Standard /Option H04-1	Option H04-2
	6kHz≤f≤250MHz	<-58dBc	<-68dBc
	250MHz<f≤4GHz	<-70dBc	<-80dBc
	4GHz<f≤10GHz	<-70dBc	<-80dBc
	10GHz<f≤20GHz	<-64dBc	<-74dBc
	20GHz<f≤40GHz	<-58dBc	<-68dBc
	40GHz<f≤67GHz	<-52dBc	<-62dBc
	67GHz<f≤110GHz	<-48dBc	<-58dBc
SSB phase noise	Offset from carrier	10Hz	100Hz	1kHz	10kHz	100kHz	1MHz	10MHz
(dBc/Hz, at +10dBm or maximum specified output power, whichever is lower)	Standard phase noise
	100MHz	—	<-110	<-128	<-134	<-138	—	—
	250MHz<f≤500MHz	—	<-108	<-126	<-132	<-136	—	—
	0.5 GHz<f≤1GHz	—	<-103	<-121	<-130	<-130	—	—
	1 GHz<f≤2GHz	—	<-97	<-117	<-124	<-124	—	—
	2 GHz<f≤4GHz	—	<-92	<-111	<-118	<-118	—	—
	4GHz<f≤10GHz	—	<-85	<-105	<-110	<-110	—	—
	10GHz<f≤20GHz	—	<-79	<-98	<-104	<-104	—	—
	20GHz<f≤40GHz	—	<-73	<-91	<-98	<-98	—	—
	40GHz<f≤67GHz	—	<-68	<-85	<-92	<-92	—	—
	67GHz<f≤110GHz	—	<-62	<-79	<-86	<-86	—	—
	H04-1 low phase noise option
	100MHz	—	<-118	<-141	<-148	<-148	—	—
	250MHz<f≤500MHz	—	<-111	<-130	<-145	<-143	—	—
	0.5 GHz<f≤1GHz	—	<-105	<-124	<-140	<-138	—	—
	1 GHz<f≤2GHz	—	<-100	<-118	<-134	<-132	—	—
	2 GHz<f≤4GHz	—	<-93	<-113	<-128	<-126	—	—
	4GHz<f≤10GHz	—	<-85	<-105	<-120	<-118	—	—
	10GHz<f≤20GHz	—	<-79	<-99	<-114	<-112	—	—
	20GHz<f≤40GHz	—	<-73	<-93	<-108	<-106	—	—
	40GHz<f≤67GHz	—	<-67	<-87	<-103	<-101	—	—
	67GHz<f≤110GHz	—	<-61	<-81	<-97	<-95	—	—
	H04-2 ultra low phase noise option
	100MHz	<-102	<-118	<-141	<-148	<-148	<-148	<-148
	250MHz<f≤500MHz	<-92	<-112	<-135	<-146	<-148	<-150	<-150
	0.5GHz<f≤1GHz	<-90	<-110	<-134	<-144	<-147	<-150	<-150
	1GHz<f≤2GHz	<-88	<-104	<-127	<-138	<-142	<-148	<-148
	2 GHz<f≤4GHz	<-82	<-99	<-122	<-135	<-136	<-146	<-148
	4GHz<f≤10GHz	<-77	<-91	<-115	<-128	<-128	<-140	<-154
	10GHz<f≤20GHz	<-71	<-85	<-109	<-122	<-122	<-134	<-152
	20GHz<f≤40GHz	<-63	<-79	<-99	<-116	<-116	<-128	<-142
	40GHz<f≤67GHz	<-57	<-73	<-94	<-110	<-110	<-122	<-136
	67GHz<f≤110GHz	<-51	<-67	<-88	<-104	<-104	<-116	<-130
Modulation characteristics
Frequency modulation	Maximum deviation:N×20MHz(N: YO harmonic number)
(50MHz<f≤50GHz,Option S11)	Accuracy(at 1kHz, N×20kHz≤deviation<N×800kHz):
	<± (2.5%× set frequency offset +20Hz)
	Modulation rate(3dB bandwidth, N×500kHz frequency offset)):DC-10MHz
	Distortion(at 1kHz, N×20kHz≤deviation<N×800kHz):<1%
Phase modulation	Maximum deviation:
(50MHz<f≤50GHz,Option S11)	Normal mode:N×20.0rad(N: YO harmonic number)
	Broadband mode:N×2rad
	Low noise mode:N×0.2rad
	Accuracy(at 1kHz,N×0.2rad≤phase deviations<N×8rad,normal mode):
	<± (3% of setting deviation+0.01 rad)
	Modulation rate(3dB bandwidth),
	(Broadband mode):DC to 10MHz(typ)
	Distortion (at 1kHz, N×0.8rad≤deviations<N×8rad, THD):<0.8%
Amplitude modulation	Maximum depth:>90％
(10MHz<f≤50GHz,Option S11)	Modution rate(3 dB bandwidth, 30% modulation depth):DC to 100kHz
	Accuracy(1kHz modulation rate,30% modulation depth):
	±(5％ of setting+1％)
	Distortion(1kHz modulation rate,Linear mode,THD,30% modulation depth):<1.5%
Pulse modulation	Option S12	>50MHz to 67GHz	>67GHz
(option S13 would cover option S12)	On/off ratio	＞80dB	＞60dB
	Rise/fall time	<20ns	＜30ns
	Repetition frequency	0Hz to 25MHz	0Hz to 25MHz
	Minimum pulse width	0.1μs	0.1μs
	Option S13	>50MHz to 67GHz
	On/off ratio	>80dB	—
	Rise/fall times	<10ns	—
	Repetition frequency	0Hz to 25MHz	—
	Minimum pulse width	20ns	—
LF out/Function generator(option S14)	Support frequency/phase modulation, amplitude modulation output
	Waveform: sina, square, triangle, sawtooth, noise, double sine, sweep sine
	Frequency range: DC to 10MHz for sine, double sine, sweep sine waveform; 0.1Hz to 1MHz for square, triangle, swatooth waveform.
	Frequency resolution:0.1Hz
	Low frequency output:amplitude: 0 to 5Vpp(nom), into 50Ω load
General characteristics
RF Output Port	1466C/D:3.5mm(Male),Impedance50Ω
	1466E/G:2.4mm(Male),Impedance50Ω
	1466H/L(:1.85mm(Male),Impedance50Ω
	1466N/P:1.0mm(Male),Impedance50Ω
Dimensions (W×H×D)	475mm×193mm×620mm(Includes handle and protective bottom corner)
Dimensions (W×H×D)	426mm×177mm×500mm(Excludes handle and protective bottom corner)
Weight	<35kg(weight depend on product model and option)
Power requirements	100 to 120VAC,50 to 60Hz or 200 to 240VAC,50 to 60Hz(adaptive power supply)
Power Consumption	<600W
Temperature Range	Operating temperature range:0℃ to +50℃;Storage temperature range:-40°C to +70°C

Host Model

Numbering	Name	Describe
1466C	Signal Generator	6kHz to 13GHz
1466D	Signal Generator	6kHz to 20GHz
1466E	Signal Generator	6kHz to 33GHz
1466G	Signal Generator	6kHz to 45GHz
1466H	Signal Generator	6kHz to 53GHz
1466L	Signal Generator	6kHz to 67GHz
1466N	Signal Generator	6kHz to 90GHz
1466P	Signal Generator	6kHz to 110GHz

Option Model

Numbering	Name	Describe	Optional
1466-H01-130	130dB programmable step attenuator	To expand output power dynamic range for 1466C/D/E/G
1466-H01-120	120dB programmable step attenuator	To expand output power dynamic range for1466H/L
1466-H01-90	90dB programmable step attenuator	To expand output power dynamic range for 1466H/L
1466-H01-50	50dB programmable step attenuator	To expand output power dynamic range for 1466N/P
1466-H01-B130	Channel B 130dB programmable step attenuator	To expand Channel B output power dynamic range for1466C/D，Requires option 1466-H11-B13/B20
1466-H04-1	Low phase noise	Improved phase noise performance,10GHz@10kHz:-120dBc/Hz.
1466-H04-2	Ultra low phase noise	Improved phase noise performance,10GHz@10kHz:-128dBc/Hz.
1466-H04-B1	Channel B low phase noise	Improved Channel B phase noise performance,10GHz@10kHz:-120dBc/Hz, Regarding options 1466-H11-B13/B20.
1466-H04-B2	Channel B ultra low phase noise	Improved Channel B phase noise performance,10GHz@10kHz:-128dBc/Hz, Regarding options 1466-H11-B13/B20, 1466-H04-2.
1466-H05-13	13GHz High output power	Improve maximum output power for 1466C
1466-H05-20	20GHz High output power	Improve maximum output power for 1466D
1466-H05-33	33GHz High output power	Improve maximum output power for 1466E
1466-H05-45	45GHz High output power	Improve maximum output power for 1466G
1466-H05-53	53GHz High output power	Improve maximum output power for 1466H
1466-H05-67	67GHz High output power	Improve maximum output power for 1466L
1466-H05-90	90GHz High output power	Improve maximum output power for 1466N
1466-H05-110	110GHz High output power	Improve maximum output power for 1466P
1466-H05-B13	13GHz Channel B High output power	Improve Channel B maximum output power for 1466C,Option 1466-H11-B13 need to be configured
1466-H05-B20	20GHz Channel B High output power	Improve Channel B maximum output power for 1466D,Option 1466-H11-B20 need to be configured
1466-07	100MHz/1GHz Reference Input and Output	Support 100MHz or 1GHz reference signal input and output functions
1466-H11-B13	13GHz Channel B	Add Channel B,output 6kHz to 13GHz analog signal for 1466C/D
1466-H11-B20	20GHz Channel B	Add Channel B,output 6kHz to 20GHz analog signal for 1466D
1466-H94	Rack mount kit	Mount kit for rack
1466-H98	English Option	English panel and English operation interface
1466-H99	Aluminum alloy transport case	High-intensity portable aluminum alloy transport case, with carrying handle and omni-directional wheel, convenient for transportation
1466-H100	User Manual paper version	A detailed user manual in hard copy is provided.

Software model

Numbering	Name	Describe	Optional
1466-S11	Analog modulation	Add analog modulation function indluding AM,FM,ΦM
1466-S12	Pulse modulation	Add pulse modulation function, minimum pulse width 100ns
1466-S13	Narrow pulse modulation	Add pulse modulation function, minimum pulse width 20ns
1466-S14	LF output/function waveform generator	Add low frequency output and function waveform signal generation
1466-S15	Ramp(analog)sweep	Add analog sweep function(Ramp sweep)
1466-S16	Power sweep	Add power sweep function
1466C-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466D-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466E-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466G-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466H-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466L-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466N-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
1466P-JL	Calibration Service	Provide metrology/calibration services and provide metrological reports
