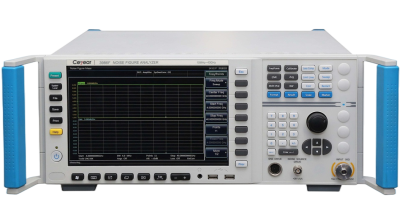

3986 Series Noise Figure Analyzer

SKU : 3986 Series Noise Figure Analyzer

Product description

 Product Overview

3986 Series Noise Figure Analyzers include 3986A (10 MHz~4 GHz), 3986D (10 MHz~18 GHz), 3986E (10 MHz~26.5 GHz), 3986F (10 MHz~40 GHz) and 3986H (10 MHz~50 GHz). Features of the product include wide-range frequency coverage, high-sensitivity reception, friendly user interface, big screen dual channel HD display, various external interfaces, and dual noise source drive etc. It can measure the noise figure and gain of amplifiers, up converters and down converters, as well as to support automatic measurement of noise figure of multi-stage converters. Guide interfaces are intuitive for setting measurement modes. The comprehensive loss compensation function can compensate loss induced in measurement channel before and/or after the device under test by means of fixed or table forms. The built-in noise figure measurement uncertainty calculator does quantitative analysis of the uncertainty of measurement noise figure. Limit line function that provides test passed/failed notification simplifies the determination of passed/failed test. User friendly features make it easy for engineering technicians to set measurements correctly, to observe and save measurement results in different forms. They can be widely used in R&D, manufacturing, testing and technical assurance tests of electronic equipment for communication etc.

 Features

Wide frequency coverage

The coaxial integrated frequency of 3986 series Noise Figure Analyzers covers the range of 10 MHz~50 GHz, where 5 frequency range configurations are selectable for different user's test demand of different band. With external MMW extended frequency modules, the noise figure measurement frequency range can be extended to 110GHz.

High-sensitivity reception and high-precision measurement performance

The optimum reception sensitivity precedes -170 dBm/Hz, and the full-band reception sensitivity precedes -162 dBm/Hz. It adopts automatic adjustment and precise calibration technologies, which improve the channel gain. And the linearity within the range of noise power measurement precedes ±0.1 dB.

Chinese and English operation interface, big screen dual channel HD display

Chinese and English operation interface with 10.1 inch big screen LCD monitor that can display in three formats, i.e. graphs, tables and meter display. In the form of graph display, it can display in combination the measurement results of two arbitrary parameters which change along with frequency, such as noise figure, Y factor, gain, and equivalent input noise temperature.

Amplifier, Up converter and down converter measurement mode

Basic amplifier measurement mode is used for noise figure and gain measurement of the device under test, which falls in the amplifier category within the frequency range of the Noise Figure Analyzers. The extended frequency range measurement in the down converter mode is used for noise figure and gain measurement of amplifier, of which the frequency exceeds the frequency range of the Noise Figure Analyzers.

They have noise figure and gain measurement functions of up converters and down converters, as well as to support automatic scanning measurement of noise figure of multi-stage converters.

Interface setting in measurement mode is intuitive. All measurement settings corresponding to measurement mode can be done in the same test interface.

Single sideband and double sideband measurement function

It has the capacity of setting, controlling and data processing for the measurement of single sideband (including upper sideband and lower sideband) and double sideband. During noise figure measurement, the sideband setting must be the same as that is actually applied of the device under test.

 Typical Application

• Basic amplifier measurement is the most common measurement mode. It's used for noise figure and gain measurement of the device under tests without frequency conversion (including active or passive linear units or systems like amplifiers, filters, and isolators).

 The down converter mode focuses on extended frequency range measurement of amplifier. When the frequency range of an amplifier exceeds that of the Noise Figure Analyzers, extended frequency range measurement of the noise figure is realized by an external mixer. External mixer is used during calibration and measurement as a part of the test system. To reduce the uncertainty of noise figure measurement, frequency conversion loss and noise figure of the chosen mixer should be as small as possible. Besides, the intermediate frequency output port of the mixer should be well isolated to local oscillation signals.

• The device under test is an up/down converter installation, up converter and transmitter or down converter and receiver for instance, then the output intermediate frequency would be in the frequency range of the Noise Figure Analyzers. During up/down converter measurement, 3986 series Noise Figure Analyzers provide two modes of settings, fixed intermediate frequency, variable local oscillation and fixed local oscillation, variable intermediate frequency, which are used for measuring the RF response characters and intermediate frequency response characters of the device under test, respectively.

 specifications

Table 1 Technical Specifications

Major Technical Specifications
Frequency   Range10 MHz~4 GHz/18 GHz/26.5 GHz/40 GHz/50   GHz
Accuracy   of Frequency Reference±<0.2ppm   (23°C±3°C)
Accuracy   of Frequency Tuning±< (Reference frequency error   +100 kHz) 10 MHz~4 GHz
±< (Reference frequency error   +400 kHz) 4 GHz~18/26.5/40/50 GHz
Noise   Figure Measurement Range0~30   dB (ENR: 12 dB~17   dB)
Noise   Figure Measurement Uncertainty±<0.1 dB
Gain   Measurement Range-20 dB~+40   dB
Gain   Measurement Uncertainty±<0.17 dB
Input   VSWR<1.90: 1         10 MHz≤f≤4 GHz
<2.10: 1         4 GHz<f≤18 GHz
<2.40: 1         18 GHz<f≤26.5 GHz
<2.40: 1         26.5 GHz<f≤40 GHz
<2.40: 1         40 GHz<f≤50 GHz
Instrument’s own  Noise Figure<8.0 dB         10 MHz≤f≤4 GHz
<7.5 dB         4 GHz<f≤18 GHz
<8.0 dB         18 GHz<f≤26.5 GHz
<10.0 dB        26.5 GHz<f≤40 GHz
<12.0 dB        40 GHz<f≤50 GHz
Jitter   (uneven)<0.17 dB        (Y Factor   Typical Value 5 dB)
Noise   source drive voltage<1.0 V          Noise   source off
+28.0±0.10 V     Noise   source on


Table2 Product Features

 General Technical Specifications
Temperature   RangeOperation:   0~+40°C

Storage:   -40~+70°C
Altitude   Range 4, 600   meters
Electromagnetic   compatibilityComply   with the following requirements of GJB 3947A-2009 provision 3.9.2:

a) Conducted   emission through CE102 power cable;

b) Conducted susceptibility of CS101 power   cable;

c) Conducted susceptibility injected by CS114   harness;

d) Radiated   emission through RE102 electric field;

e) Radiated   susceptibility through RS103 electric field.
SafetyComply   with safety certificate requirements of GJB 3947A-2009 provision 3.10.

a) The resistance between power input end and the chassis (power switch on engaged   position) shall be no less than100 MΩ   under standard atmosphere pressure and no less than 2 MΩ in damp environment.

b) Apply  1500 VAC   between the power   input end and the chassis. And   no symptom like breakdown, flash-over and flicker shall happen.

c) In operation, leakage current between chassis and ground shall be no more than   3.5 mA.
Power   requirements Voltage   and frequency (nominal value)

220 V, 50 Hz;

(99~121) Vrms, (50~60/440) Hz
(198~242) Vrms, (50~60) Hz

Power   consumptionMax. power   consumption: 250 W
Max.   standby: 20 W
Monitor 1280×800, XGA
10.1"
Data   storage

160 G solid state disk

Support USB   2.0 standard storage units

Weight

Net weight:   less than23 kg;

Packaged   shipping weight: 34 kg   nominal value

Size Width×Height×Depth   (mm)=426×177×460 (handle, bottom, pad and side strap excluded), allowed   tolerance ±10 mm.

Width×Height×Depth   (mm)=510×190×534 (handle, bottom, pad and side strap included), allowed   tolerance ±10 mm.
Warranty3986 Series   Noise Figure Analyzers are   under a standard warranty of 18 months.
ReliabilityMTBF (θ0)   ≥5000 h
Calibration   intervalA   calibration interval of one year is recommended. Calibration service shall be   provided by professional calibration institutions.



Table3 Front Panel Interfaces

Front Panel Interfaces



RF   input connector

3986A 3.5 mm (m)
3986D3.5 mm (m)
3986E3.5 mm (m)
3986F2.4 mm (m)
3986H2.4 mm (m)
Standard   noise source drive outputBNC female adapter
Smart   noise source drive outputMulti-core connector
USB2.0   interface For connecting mouse, keyboard, and   updating software and backing up data.


Table 4 Back Panel Interfaces

Back Panel Interfaces
Keyboard   interfaceStandard PS/2   interface for connecting standard computer keyboard.
Video   interfaceVGA   interface (15-core D-SUB adapter) for connecting monitors
LAN   interface StandardRJ-45   type, 1000Base-T for software update and remote control
GP-IB   Interface IEEE-488 Bus connector, 24-pin plug (GP-IB   code: SH1, AH1, T6, L4, SR1, RL1, PP0, DC1, C0) for remote control
USB2.0   interfaceFor connecting mouse, keyboard, and   updating software and backing up data.
10   MHz reference input 50 Ω   impedance, BNC female adapter, amplitude range -5 dBm~+10   dBm
10   MHz reference output 50 Ω   impedance, BNC female adapter, output amplitude ≥0 dBm
Trigger   inputBNC female adapter
Trigger   output1BNC female adapter
Trigger   output2 BNC female adapter
Detection   outputBNC female adapter
